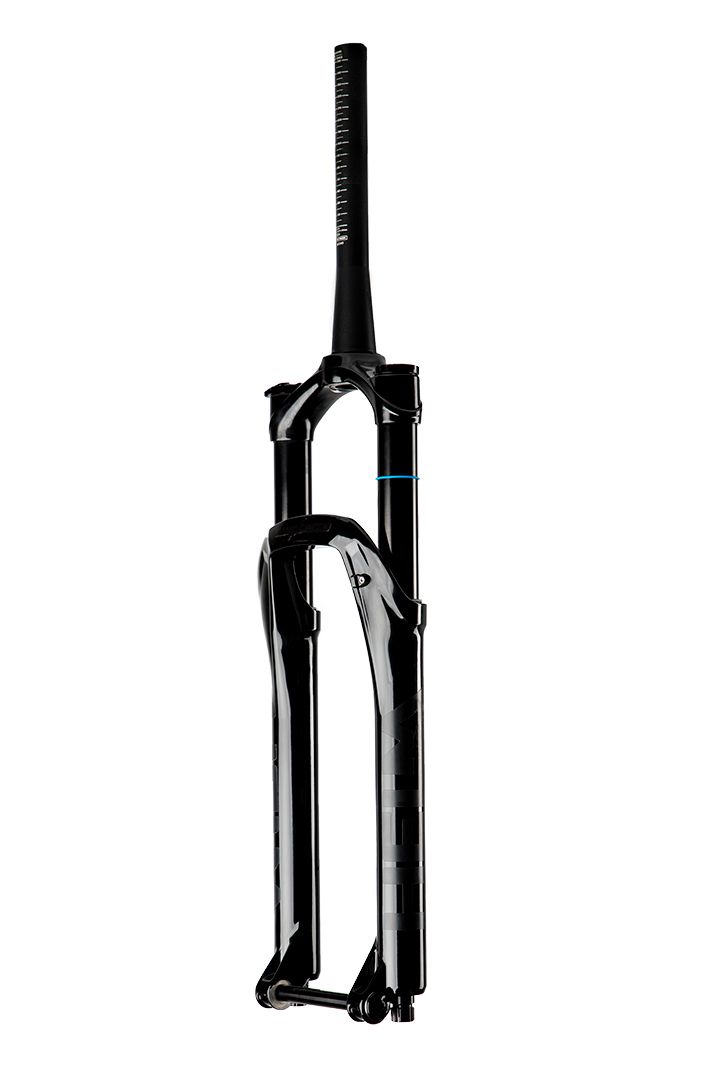

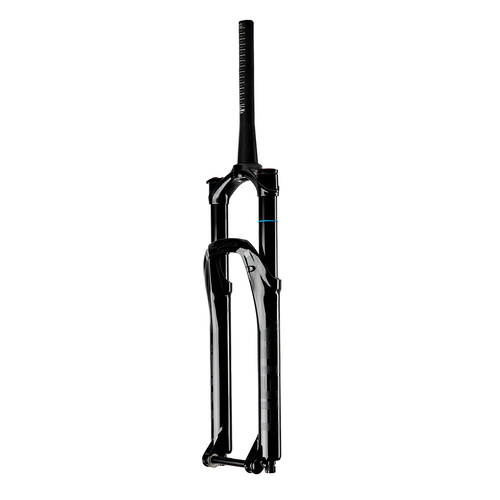

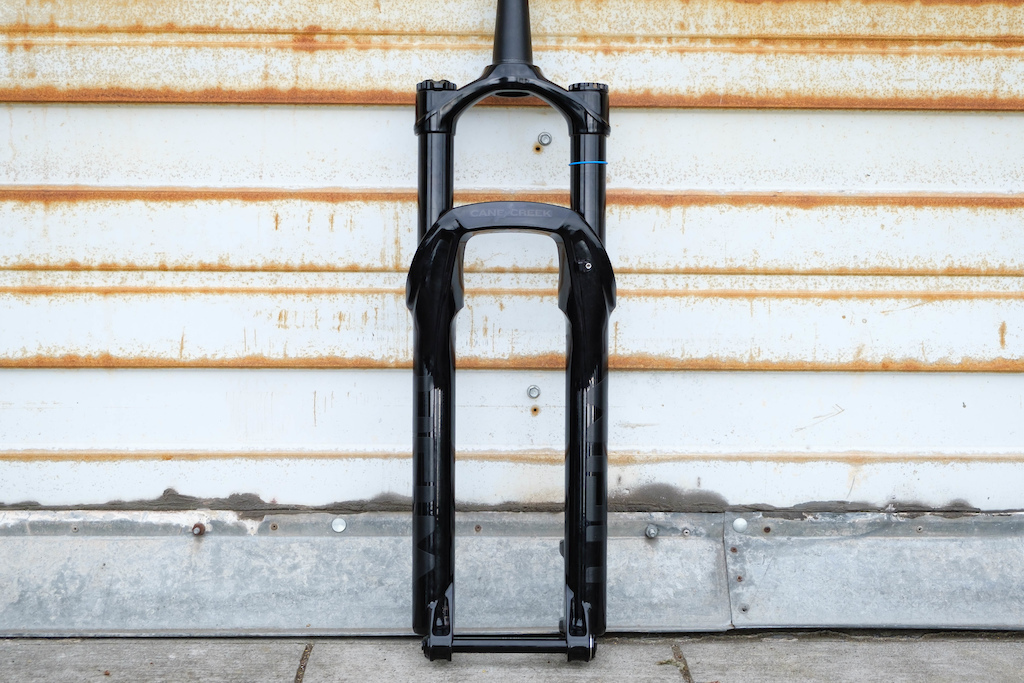

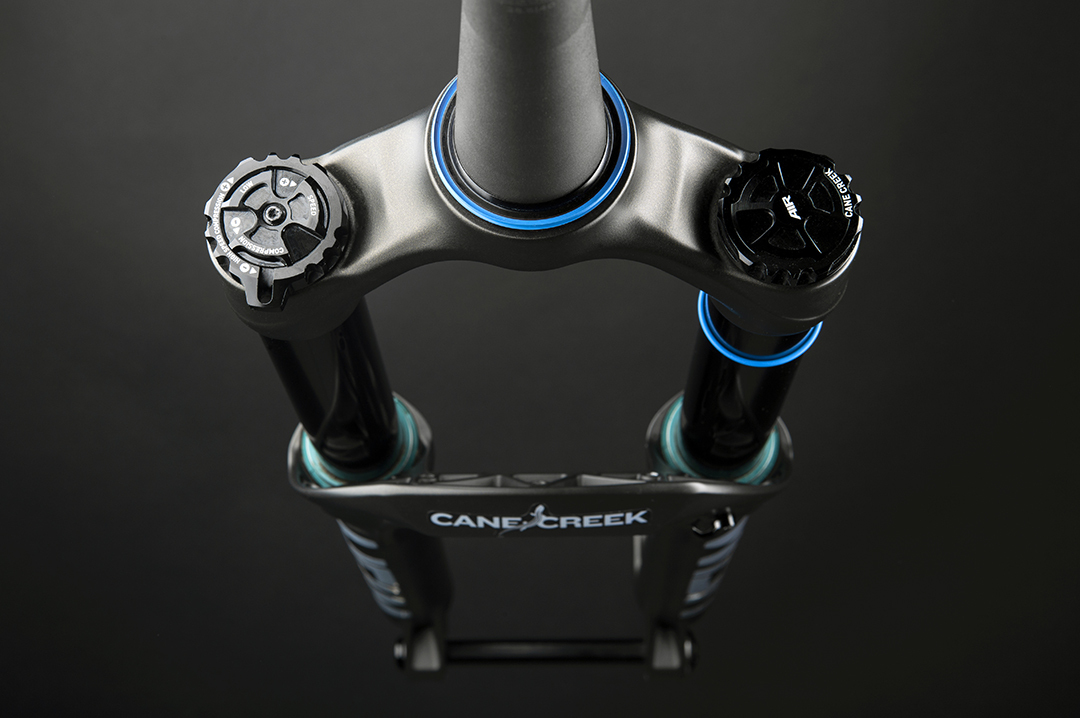

Fork HELM - Mark II - COIL - 29 - 160MM - 51mm Offset - GLOSS BLACK (BAG0678)

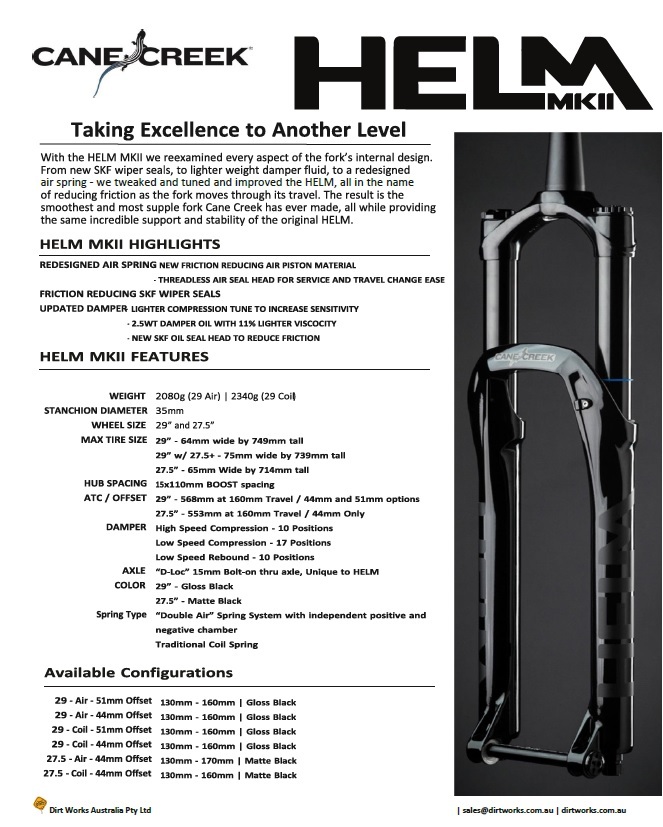

Taking Excellence to Another Level
With the HELM MKII we re-examined every aspect of the fork’s internal design. From new SKF wiper seals, to lighter weight damper fluid, to a redesigned air spring - we tweaked and tuned and improved the HELM, all in the name of reducing friction as the fork moves through its travel. The result is the smoothest and most supple fork Cane Creek has ever made, all while providing the same incredible support and stability of the original HELM.
HELM MKII HIGHLIGHTS

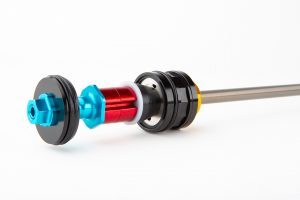

REDESIGNED AIR SPRING
- NEW FRICTION REDUCING AIR PISTON MATERIAL

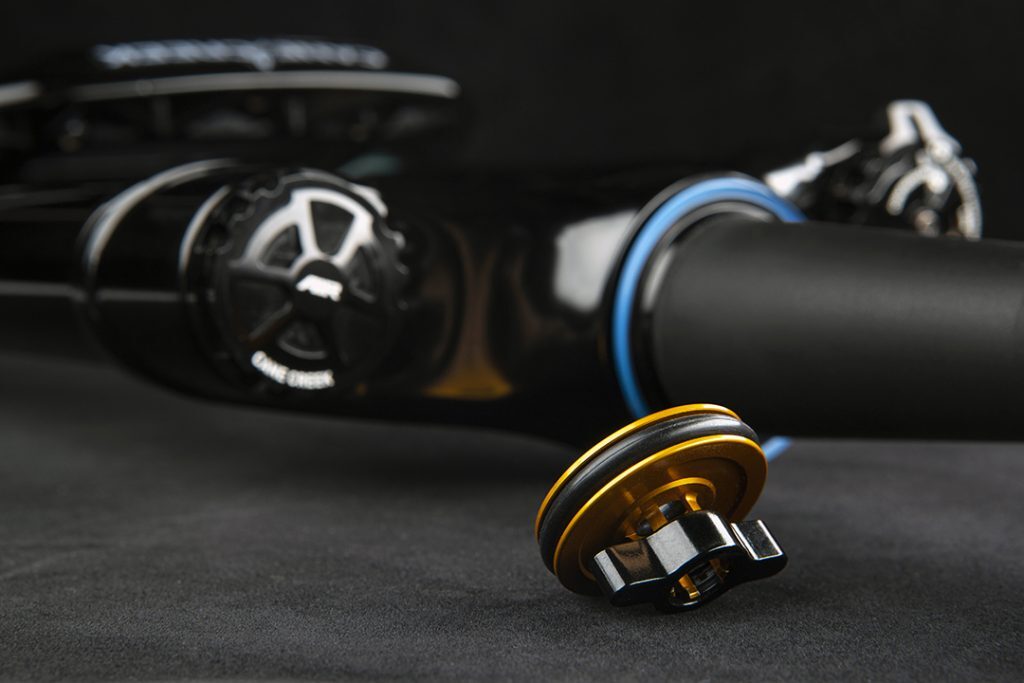

- THREADLESS AIR SEAL HEAD FOR SERVICE AND TRAVEL CHANGE EASE

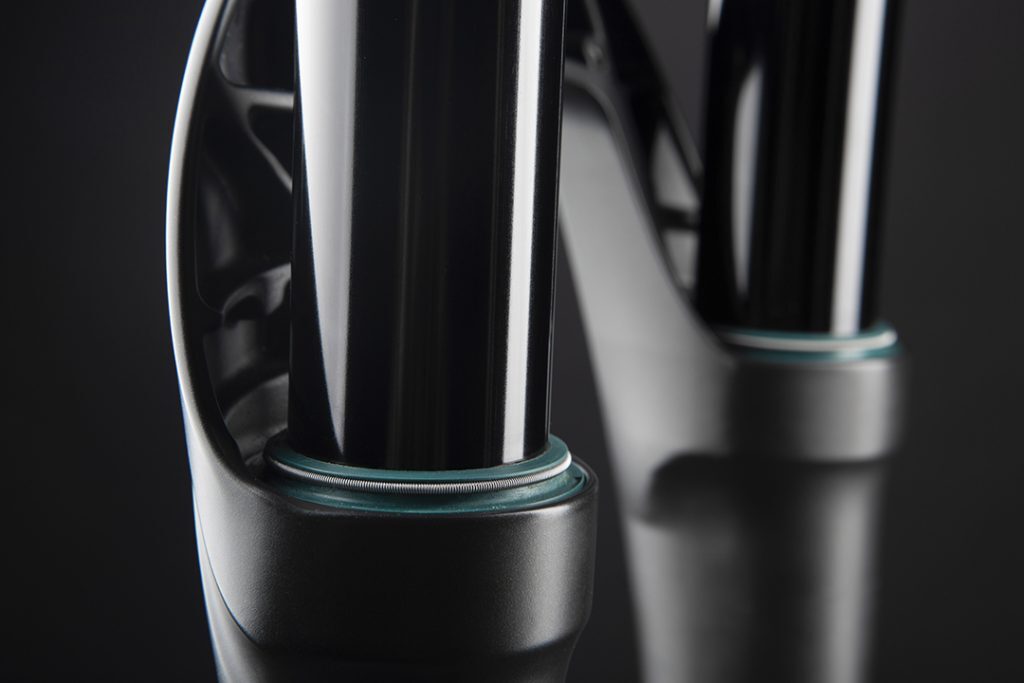

FRICTION REDUCING SKF WIPER SEALS
UPDATED DAMPER
- LIGHTER COMPRESSION TUNE TO INCREASE SENSITIVITY
- 2.5WT DAMPER OIL WITH 11% LIGHTER VISCOSITY
- NEW SKF OIL SEAL HEAD TO REDUCE FRICTION
HELM MKII FEATURES
WEIGHT - 2080g (29 Air) | 2340g (29 Coil)
STANCHION DIAMETER - 35mm
WHEEL SIZE - 29” and 27.5”
MAX TIRE SIZE - 29” - 64mm wide by 749mm tall
29” w/ 27.5+ - 75mm wide by 739mm tall
27.5” - 65mm Wide by 714mm tall
HUB SPACING - 15x110mm BOOST spacing
ATC / OFFSET - 29” - 568mm at 160mm Travel / 44mm and 51mm options
27.5” - 553mm at 160mm Travel / 44mm Only
DAMPER - High Speed Compression - 10 Positions
Low Speed Compression - 17 Positions
Low Speed Rebound - 10 Positions
AXLE - “D-Loc” 15mm Bolt-on thru axle, Unique to HELM
COLOR - 29” - Gloss Black
27.5” - Matte Black
Spring Type - “Double Air” Spring System with independent positive and negative chamber

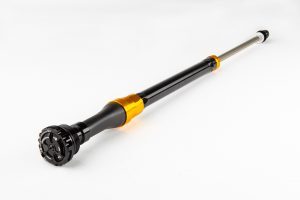

Traditional Coil Spring
(CSG-FKHLM2CBST2951GK)
SKU | CSG-FKHLM2CBST2951GK |
Barcode # | 840226098661 |
Brand | Cane Creek |
Shipping Weight | 3.5000kg |
Shipping Width | 0.140m |
Shipping Height | 0.250m |
Shipping Length | 0.910m |
Shipping Cubic | 0.031850000m3 |
