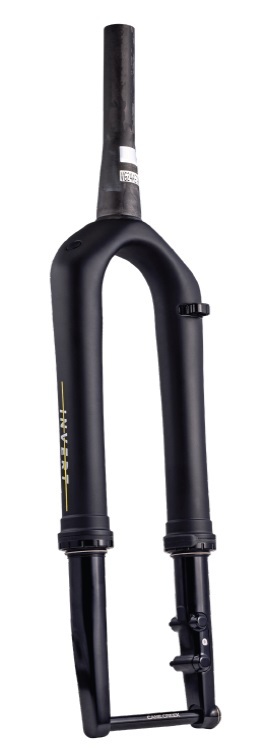

Fork INVERT GRAVEL 40MM CS - FULL ASSEMBLY BOXED (BBG0005)

$2,033.95 Inc. GST
In Stock

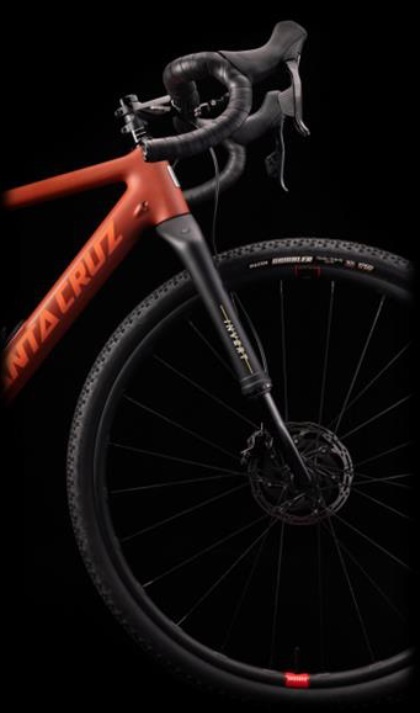

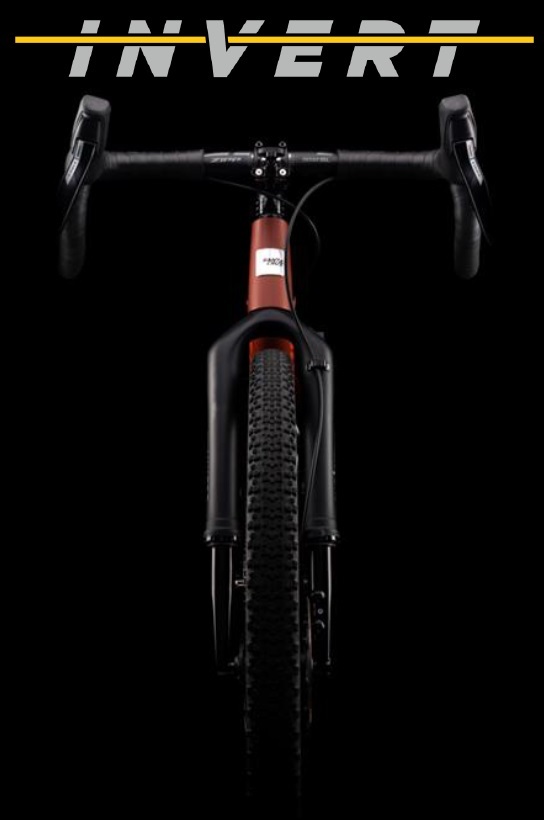

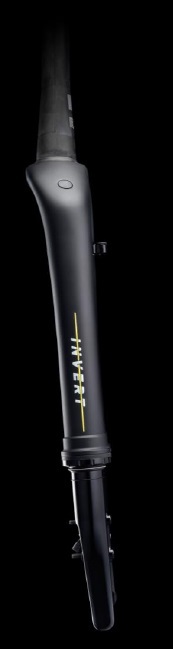

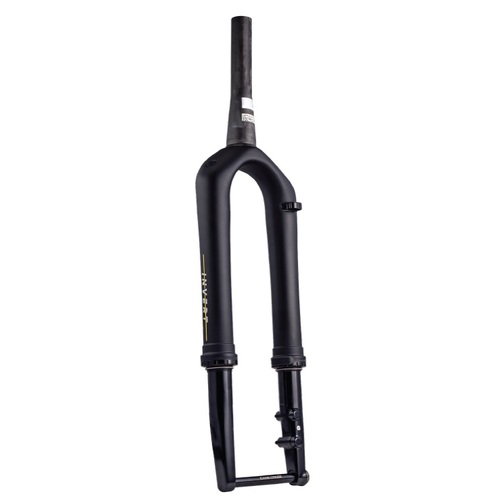

Fork INVERT GRAVEL 40MM CS (BBG0005)

Invert is the World’s First Gravel fork.
It gives tangible Rider Benefit in the form of a smoother ride with the confidence and control to glide over rough roads. It beautifully integrates into the classic aesthetic of drop bar bikes, is the lightest, fully functional Gravel fork on the market, and is incredibly easy to setup and use. No other fork provides this level of functional benefit in a package that’s this sleek.

Available in two models - Invert SL and Invert CS - a minimal and superlight version, with slightly reduced travel, and one with the added functionality of Climb Switch and an extra 10mm of travel for taking on the roughest roads.

SPECIFICATIONS:

WEIGHT: 990g (SL) / 1113g (CS)
TRAVEL: 30mm (SL) / 40mm (CS)
CHASSIS: Carbon fiber crown & steerer bonded to aluminium upper tubes

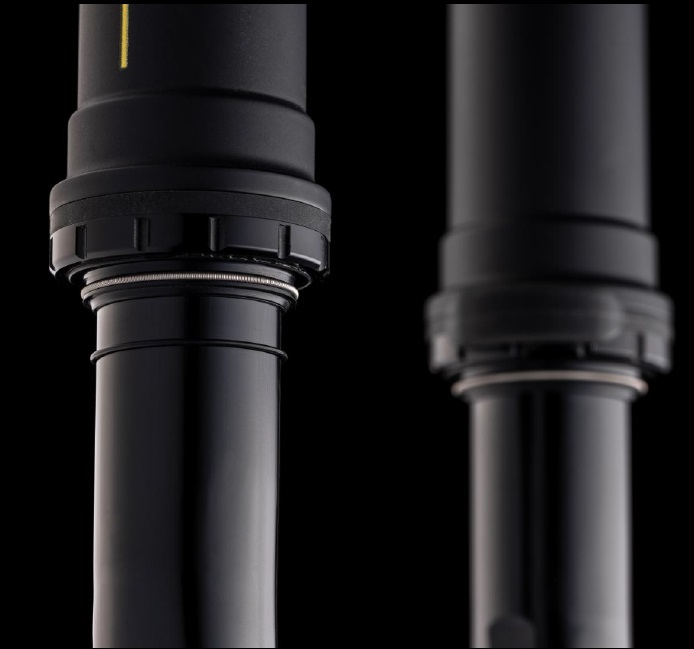

LOWERS: One piece, forged and machined 30mm stanchions with integrated hidden brake caliper bolts and hidden thru axle
MAX TIRE SIZE: 700c x 50mm
BRAKE: 160mm flat mount disc - 180mm compatible with adapter BBG0800
HUB SPACING: 12mm x 100 Thru Axle (axle included)
ATC / OFFSET: SL - 425mm / 45mm - CS - 435mm / 45mm
STEERER TUBE: 1 1/8” to 1.5” Tapered (28.6mm to 40mm)
CROWN RACE: Integrated, 36 degree angle

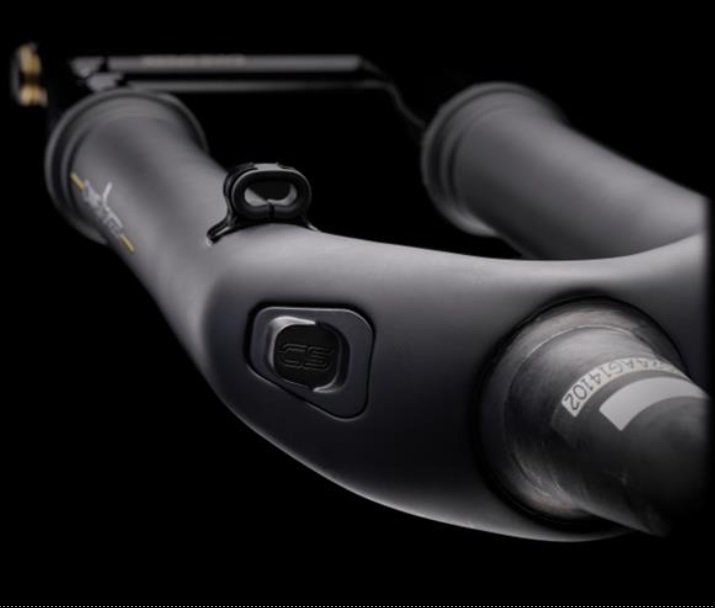

ADJUSTMENTS: Air Spring adjusts for rider weight, Climb Switch on Invert CS engages firm mode out of saddle pedaling. Single-click activation dramatically reduces fork movement.
WARRANTY: 2 Years

(CSG-FKBBG0005)

SKU CSG-FKBBG0005
Barcode # 840226007540
Brand Cane Creek
Shipping Weight 6.0000kg
Shipping Width 0.140m
Shipping Height 0.250m
Shipping Length 0.910m
Shipping Cubic 0.031850000m3
