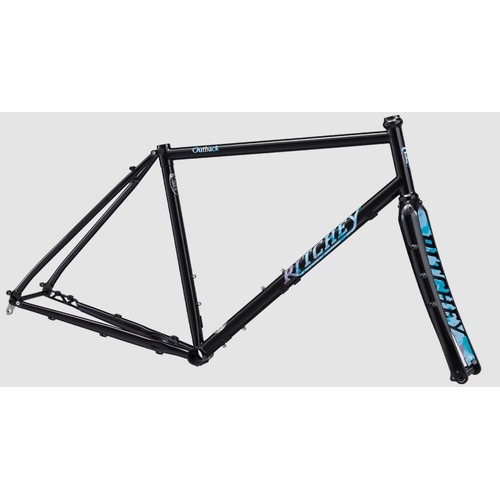

FRAMESET GRAVEL

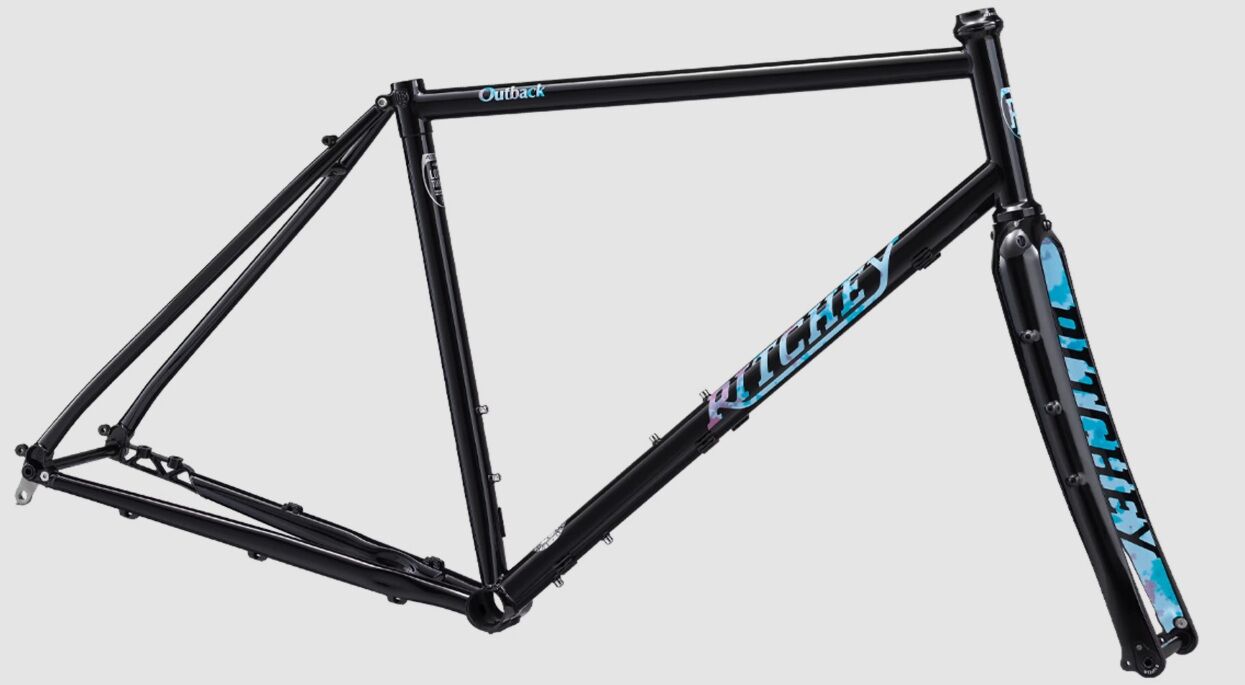

RITCHEY OUTBACK
Tom Ritchey rides about 10,000 miles (16,000 km) per year, and most of that is off-road. Combine that with his more than 40 years of designing and building bicycles, and it’s no wonder the Outback has become an icon in the gritty world of gravel and adventure bikes.

Updated for 2020, the new Outback now sports several practical and adaptable features that offer riders the ability to chase epic ride experiences beyond the end of the road and the end of the day.

Rack and fender mounts help to keep things dry and expand the load-carrying capacity for longer bikepacking
adventures, while clearance for 700c x 48mm or 650b x 2.0in tires opens up a whole new world of possibilities. The frame accepts flat-mount disc calipers, and the new all-carbon fiber Ritchey Adventure Fork with multi-purpose mounts on the legs gives you more places to stow the supplies you gather at the last cafe.

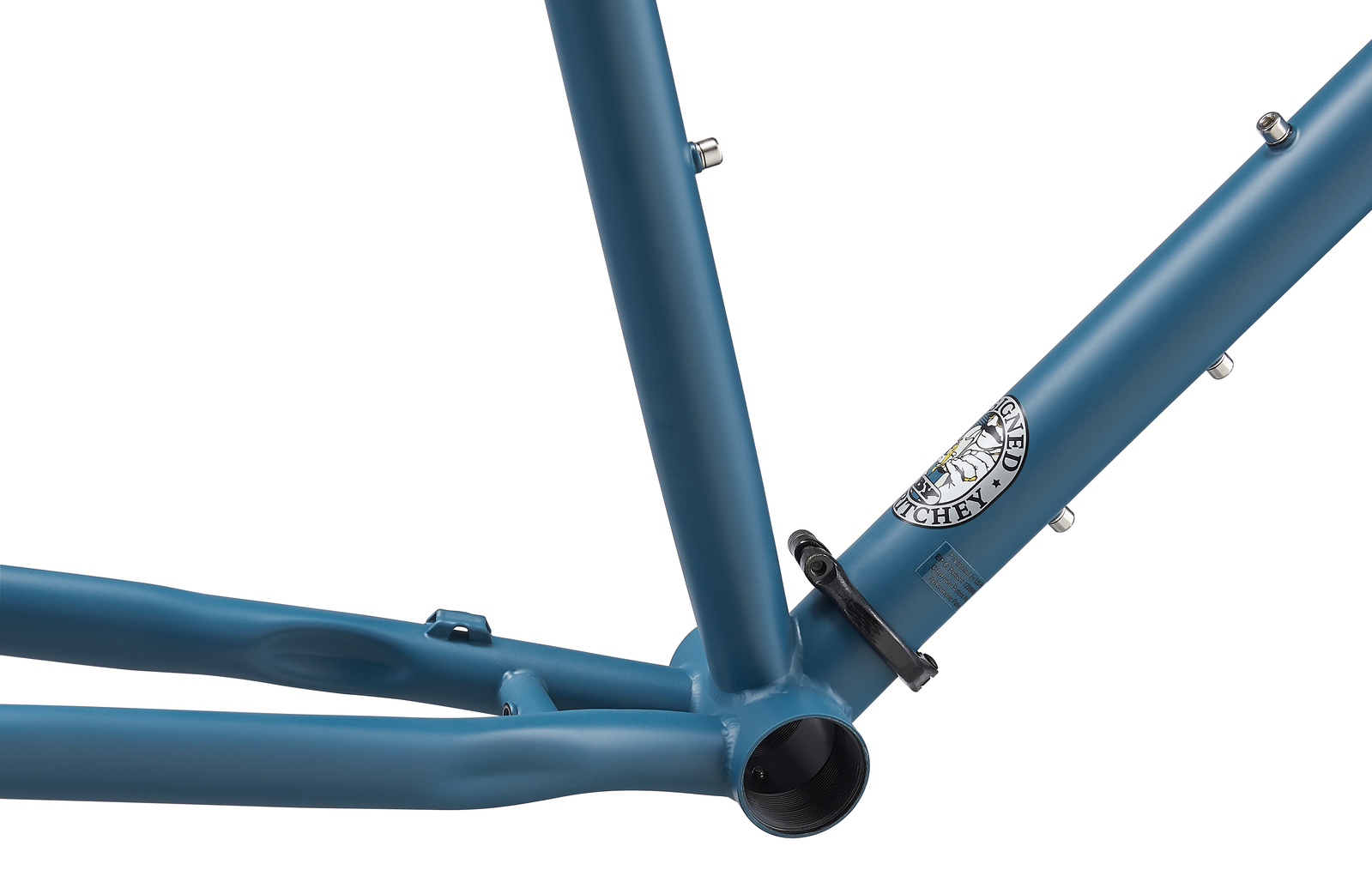

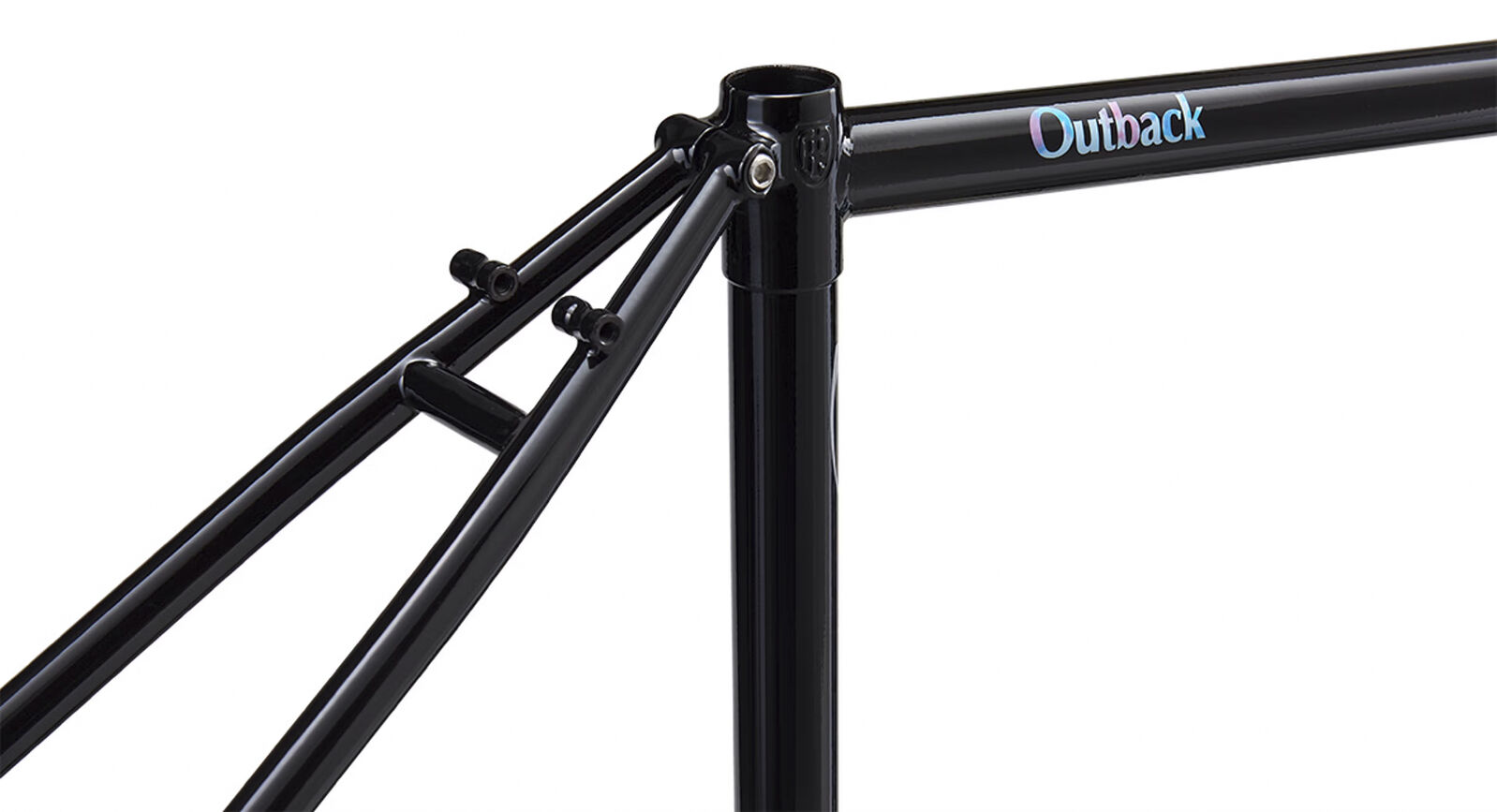

Painstakingly TIG-welded with proprietary triple-butted Ritchey Logic steel tubing, the Outback frame delivers the legendary Ritchey ride quality that’s resilient over the harshest terrain and delightfully responsive when you want to open it up.

Road, off-road, trail, expedition, you name it…the new Ritchey Outback is designed do it all.

SPECIFICATIONS

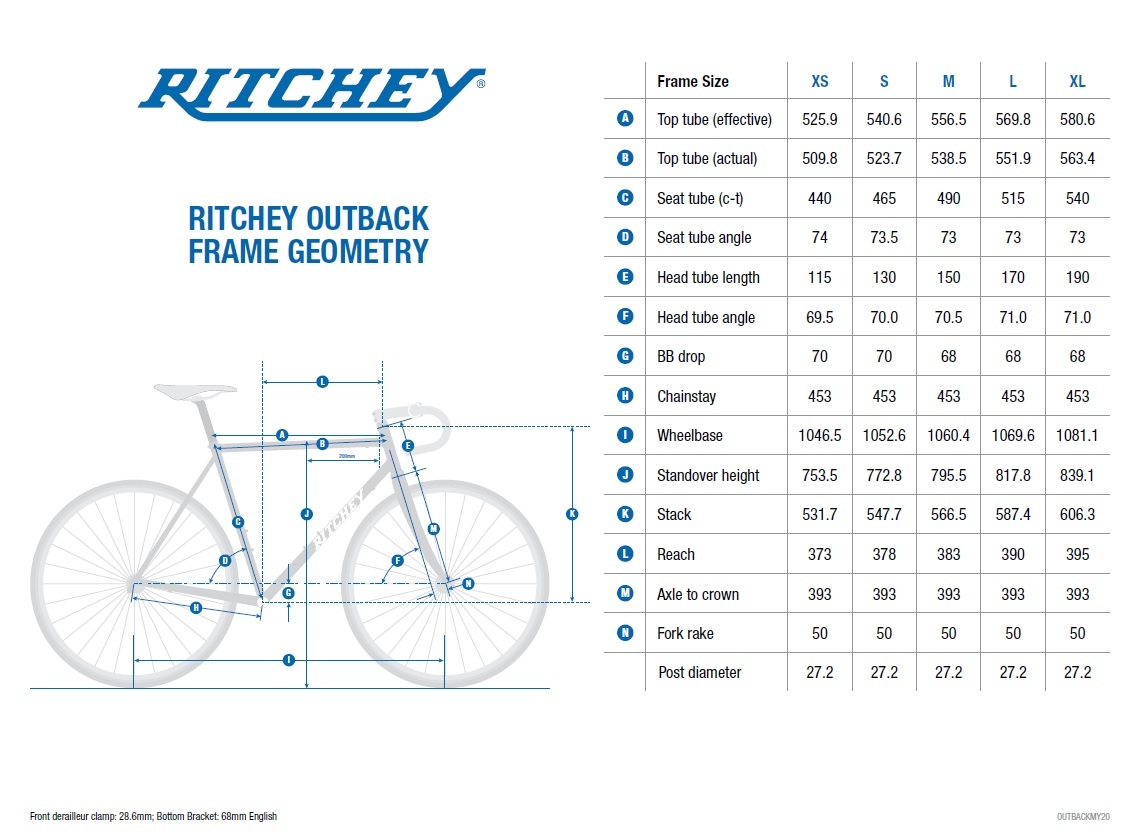

• Sizes: XS, S, M, L XL
• Heat-treated, triple-butted Ritchey Logic tubeset
• Flat-mount brake compatibility

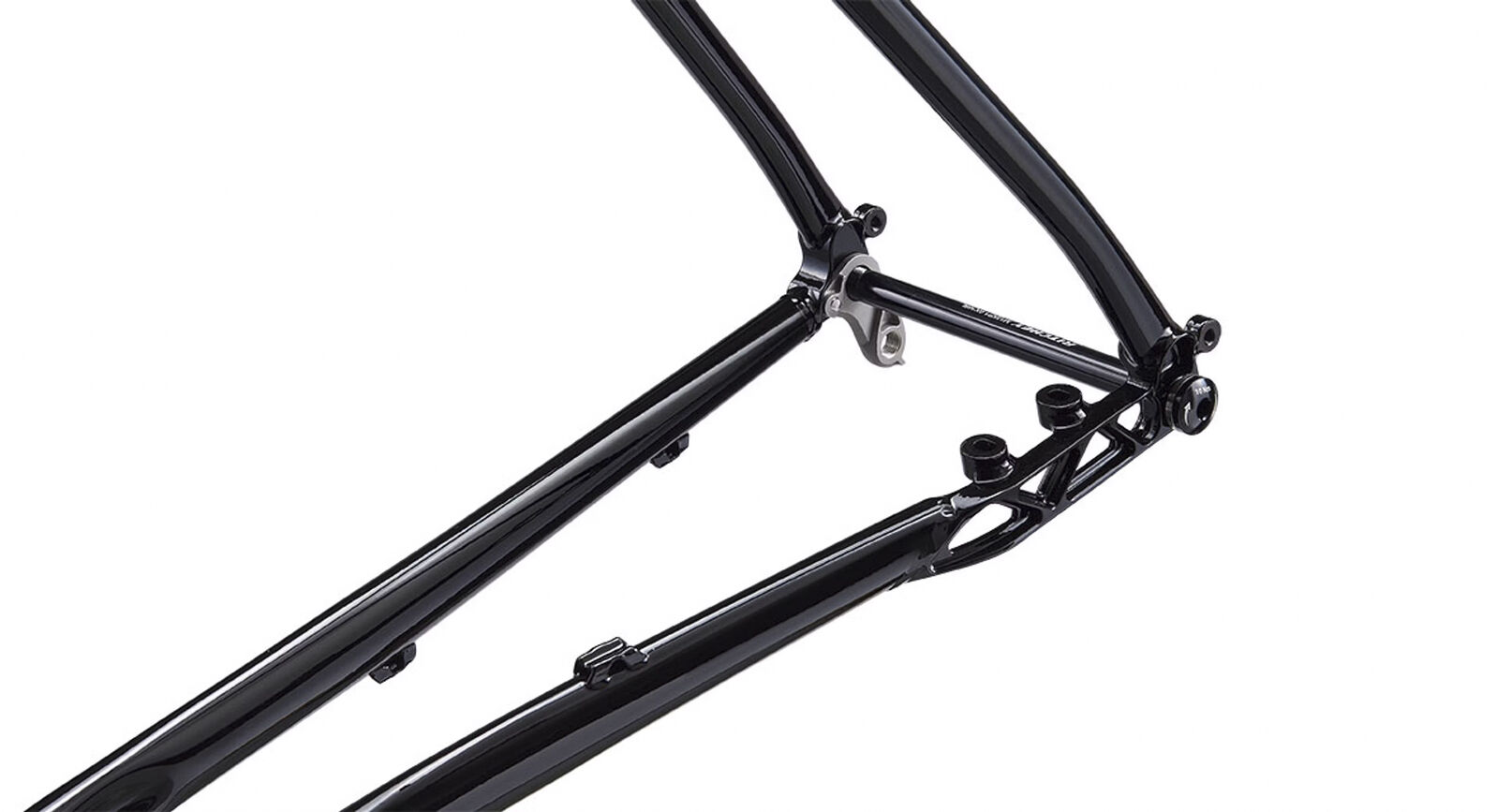

• Thru-axles in front and rear
• TIG-welded

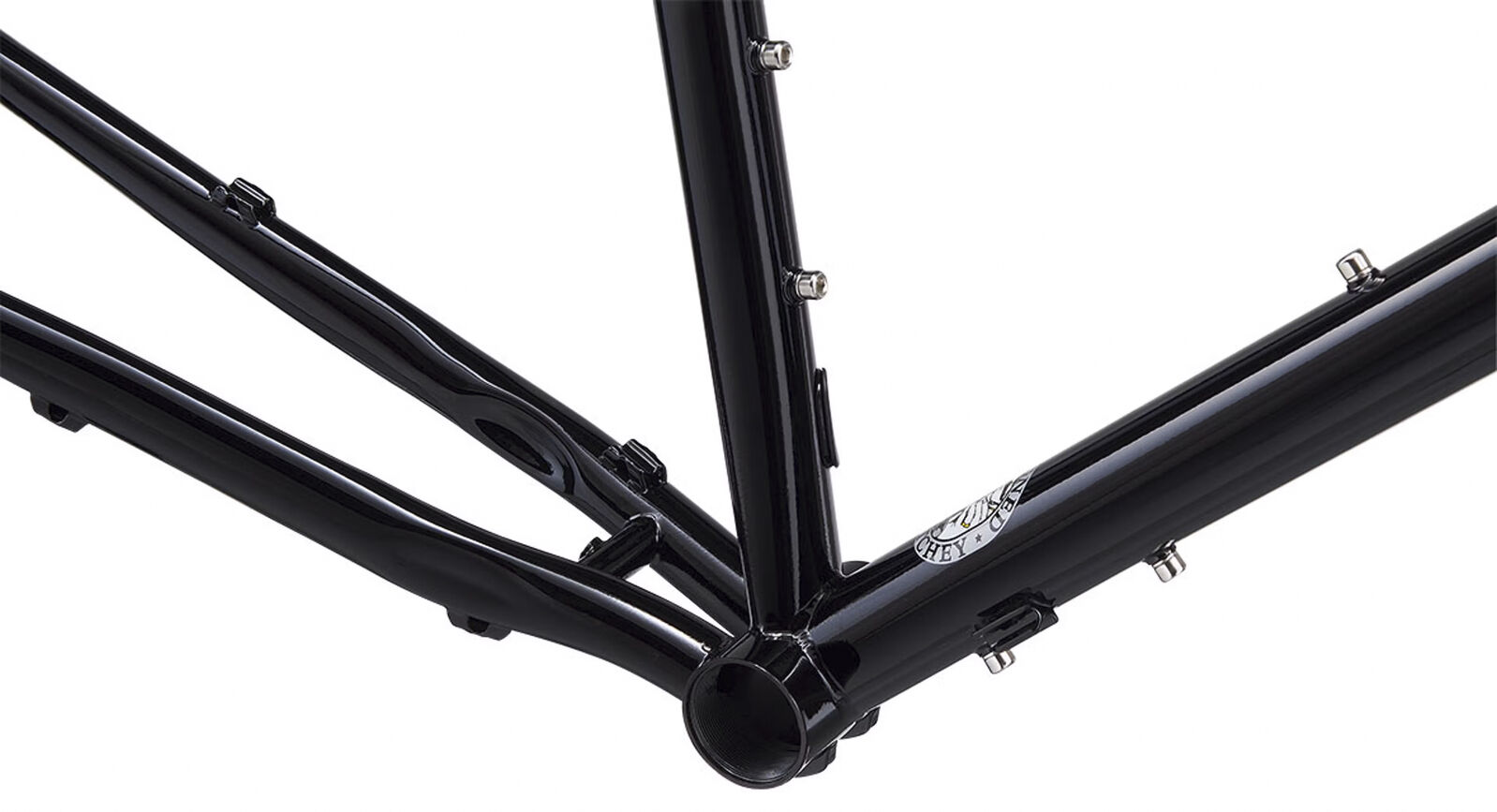

• Rack and fender mounts

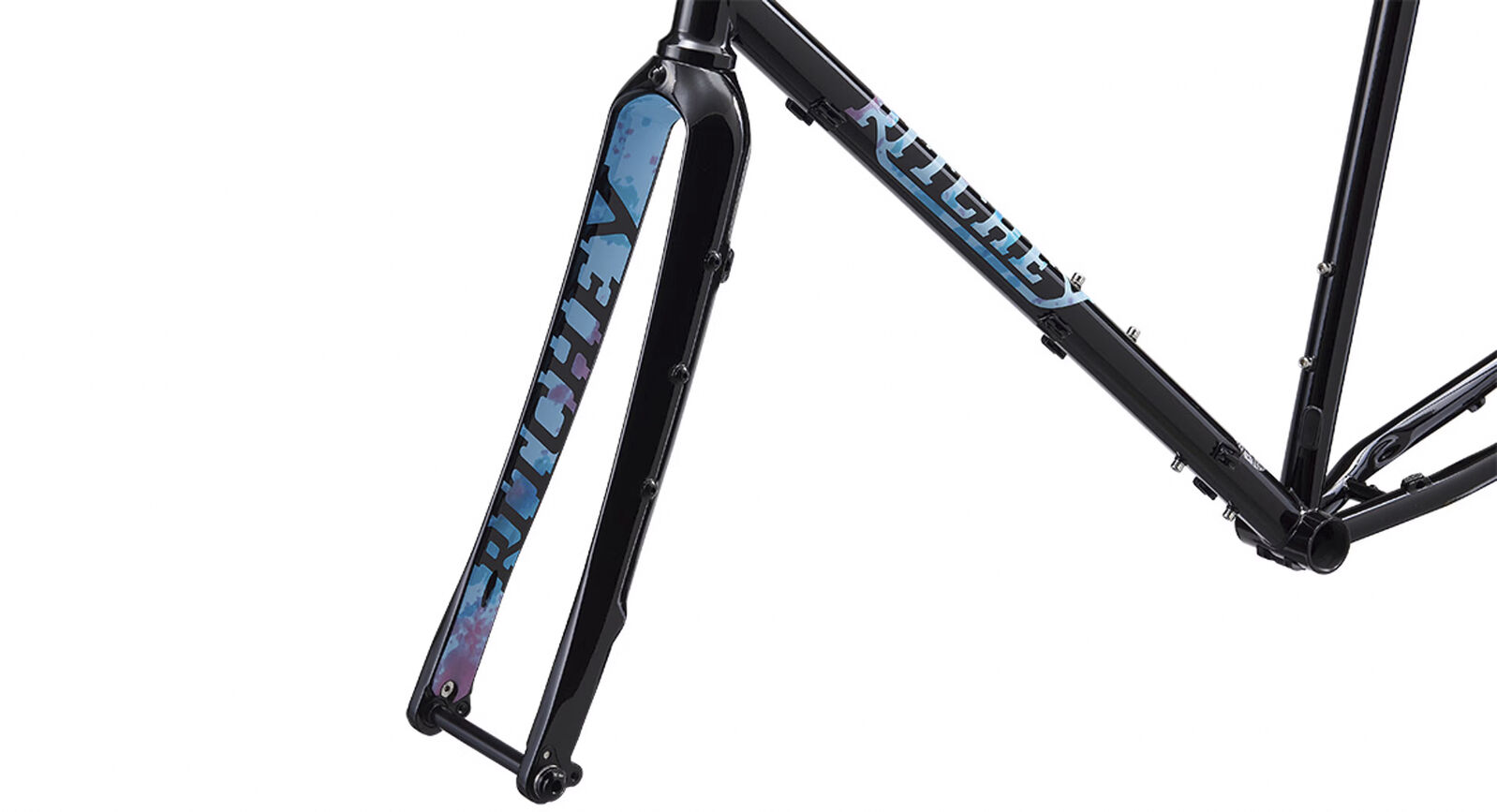

• New Ritchey Adventure Fork with multi-purpose mounts

• Tire Clearance: 700 x 48mm or 650 x 2.0in

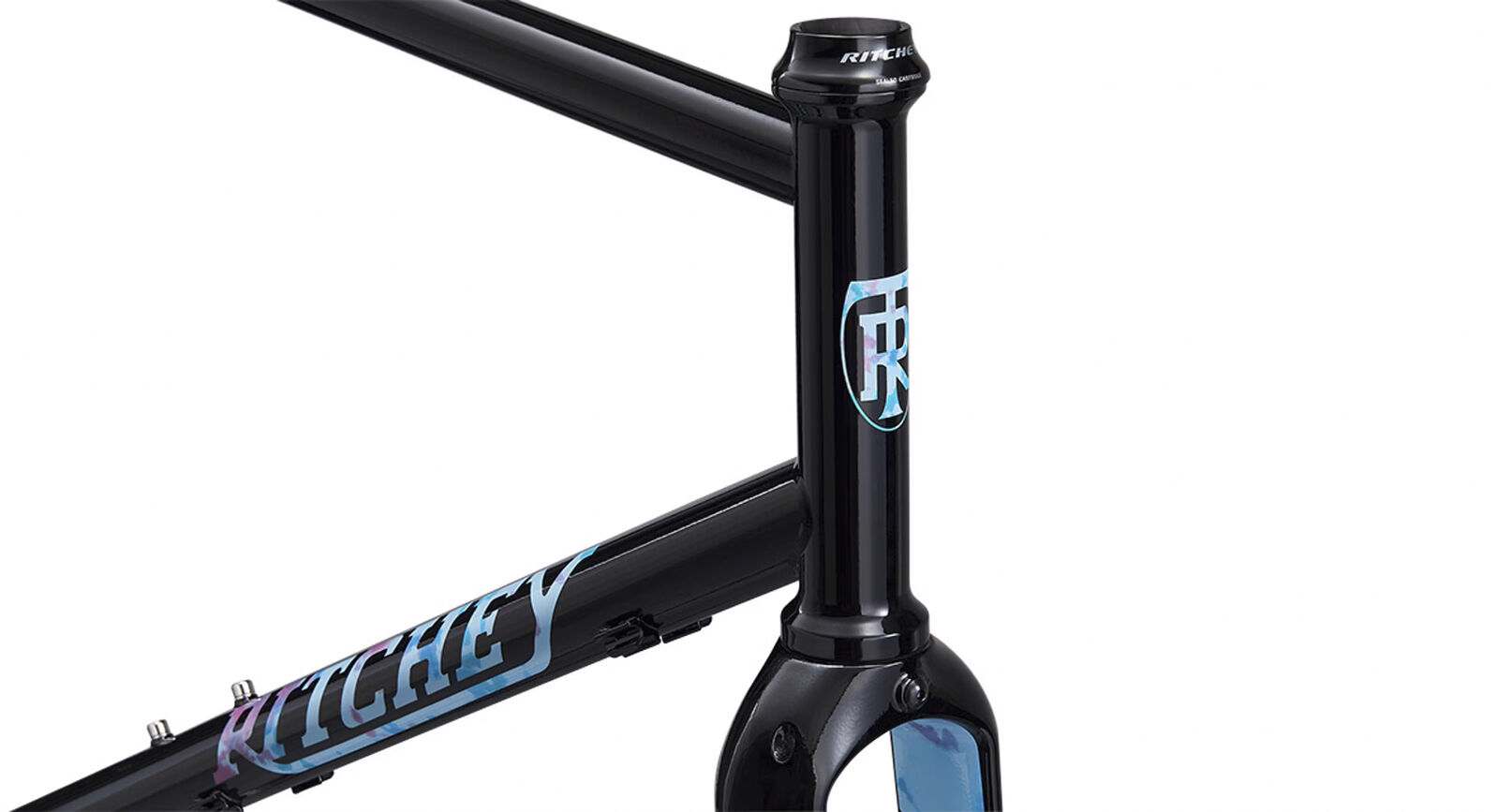

• Headset: WCS drop in 1-1/8” (included)
• Frame Weight: 2.27 kg (XL w/ thru-axle and derailleur hanger)
• Fork Weight: 473g (uncut w/ thru-axle)
• Total Weight: 2.74 kg (XL)

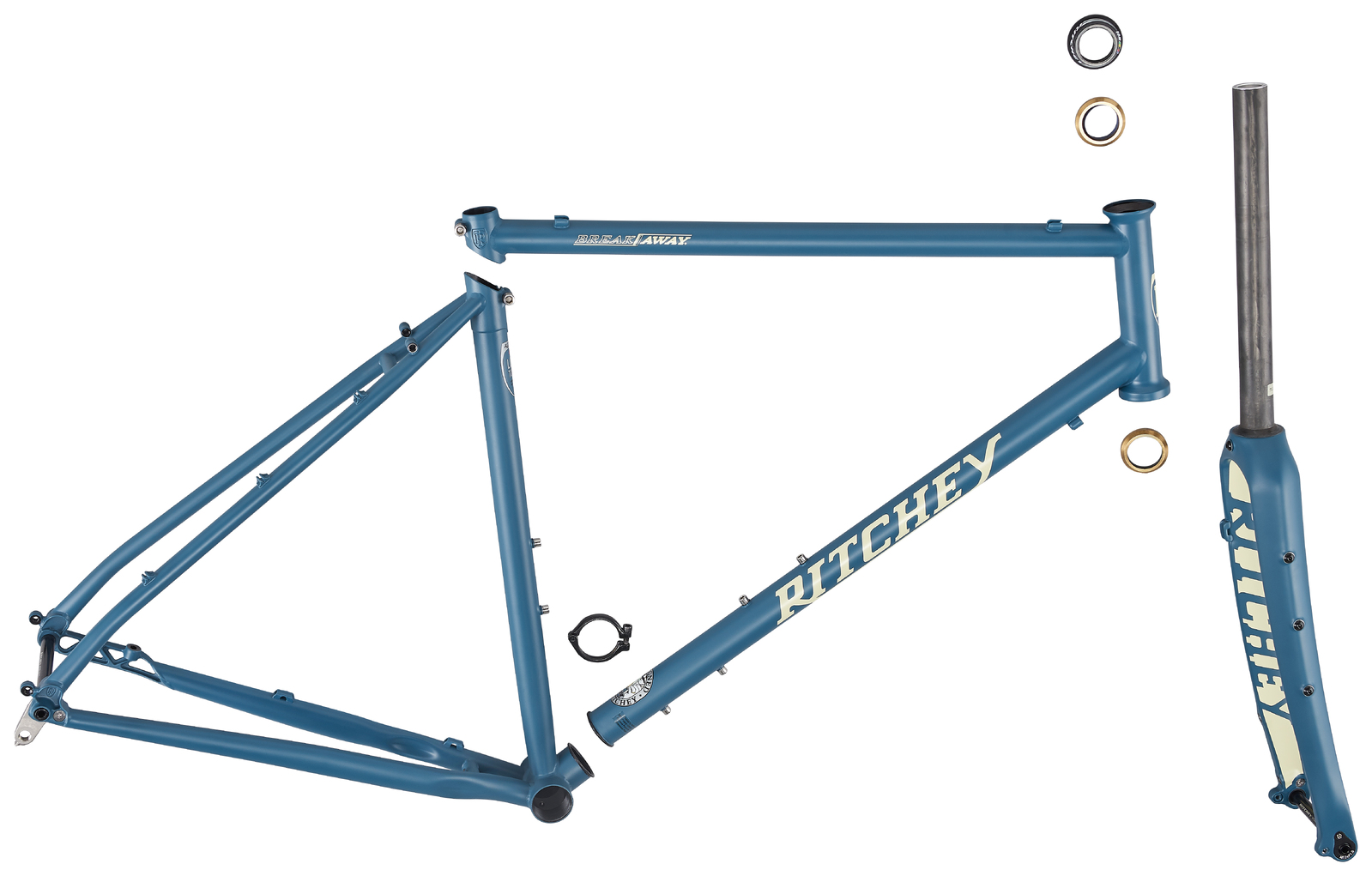

• Color: Guacamole (std framekit only) or Foam Blue (Breakaway only)

OUTBACK V2 review - https://www.youtube.com/watch?v=jwIyehmAO8I

OUTBACK V2 review - https://www.youtube.com/watch?v=ncqBSMjU9-U

Experience Ritchey - https://www.youtube.com/watch?v=PzqfJ9ZT8sg

BIKE FRAMES
It can be said that Ritchey steel bike frames are as iconic as the European masters that came before. Truly contemporary classics, Ritchey bike frames are for discerning cyclists who want a timeless bicycle that is sure to be the subject of discussion at any club ride or local. From the forged, machined headtube to the force directional, location-specific butted tubing,

Ritchey bikes are more than classy steel frames. They're a logical choice when looking to build up your next dream bike.
