FRAMESET ROAD - Ritchey

RITCHEY ROAD LOGIC
Steeped with more than 40 years of frame-building heritage, innovation, exploration, and lots of riding, the classic lines of this beautiful steel frame and carbon fibre fork unite with modern building techniques and proven materials to deliver a contemporary bicycle that’s wonderfully comfortable for long days in the saddle, nimble and stiff enough to win the sprint for that sign, and adequately adaptable to endure roads that might lack proper pavement.

The frame is built with a heat-treated and triple-butted proprietary Ritchey Logic tube set and features a straight headtube and aggressively short-butted sections optimized for TIG welding that save weight and improve ride quality.

The Road Logic is available in FOUR models. The Road Logic DISC, the Road Logic Classic (rim brake), the new Break-away Road Logic (rim brake) and the ALL NEW Montebello randonneur (disc) framekit

Frame - Montebello Disc

The Montebello perfectly represents how a bike’s design is — in fact — a solution to something greater than achieving forward momentum. Even though long-distance rides, called brevets, randonneurs, or audaxes (depending on where they happen), date back more than a century, creating bikes uniquely suited for riding hundreds of kilometers at a time has been less of a priority. Each year Tom Ritchey averages about 15,000 miles in the saddle, which doubles as his “lab” for designing new bikes.

Not simply another road bike, the Montebello adds features and design touches aimed at riders who desire to ride longer than long-distance rides. Built with proprietary triple-butted Logic steel tubing, the Montebello sports increased stack, a longer wheelbase, and a lower bottom bracket than its Road Logic sibling. Such geometrical choices deliver a welcoming and stable ride when you see the sun set and rise again. Other practical features of the frameset include fender and rack mounts that Ritchey fans have been asking for.

This unique frameset also includes the new WCS Carbon Brevet Fork designed specifically for this frame. With clearance for 40c tires without a fender — or 36 with a fender, this fork has special mounting options for either a porteur or lowrider rack on its legs, and threaded drilling in the crown for attaching said rack lights. Ideal for long rides, internal Dynamo routing is fast becoming standard among Ritchey adventure forks. And, of course, the Brevet Fork sports the hallmark of Ritchey forks – a 1–1/8th straight steerer for a precise yet forgiving ride experience.

Frame

Material: heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
Ultra-light forged and machined straight 1-1/8" headtube
Electrophoretic Deposition (ED Coat) treated for corrosion resistance
Bottle cage mounts: 2
Seat tube clamp size: 28.6mm (2.5Nm max for derailleur clamps and chain guides)
27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)
Bottom bracket: 68mm - English threaded
142mm spacing (12mm alloy thru-axle included)
Chainline: 49mm
Crankset min/max ring size - single36 to 50t / double: 46/30t to 53/39t
Can accommodate 1X or 2X chainrings
Rack and fender mounts
Stealth wire routing for semi-wireless Di2 groupsets
Includes stops/guides for brake hoses and mechanical groupsets
External cable routing
WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)
Replaceable stainless-steel derailleur hanger

Fork

Ritchey WCS Carbon Disc Road Fork included
Internal dynamo routing
Porteur or low-rider rack mounts
Fork max payload3kg per side
1-1/8" straight steerer with integrated 45-degree crown race
Steerer length: 300mm
Axle-crown: 88mm
Rake/Offset: 48mm
100mm spacing (12mm alloy thru-axle included)
30mm maximum spacers below stem

Tyre Compatibility

Wheel and tyre compatibility: 700 x 36c tire clearance with fender, 700x40c without (depending on tyre/rim manufacturer)
Frame spacing: 46mm
Fork spacing: 52mm

Brake Compatibility

Flat-mount brakes front and rear: 140mm (160mm max - adaptors available separately)
Frame flat-mount bracket height: 10mm

Details

Sizes: XS / S / M / L / XL / XXL
Frame weight: 2,000g (size M - w/o thru-axle)
Fork weight: 415g (with uncut steerer / not including axle)
Colour: Hot Sauce

Frame - Road Logic Disc

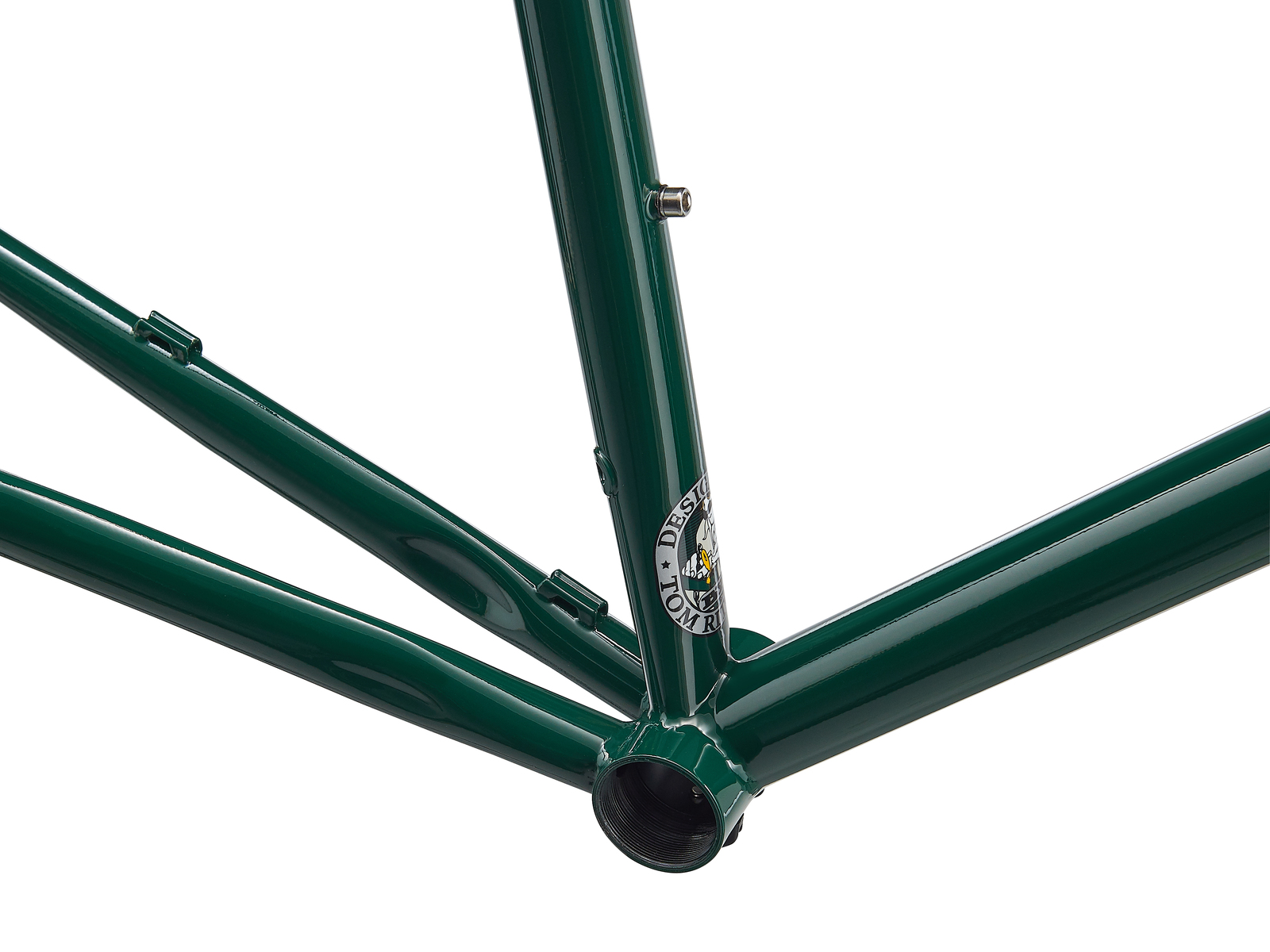

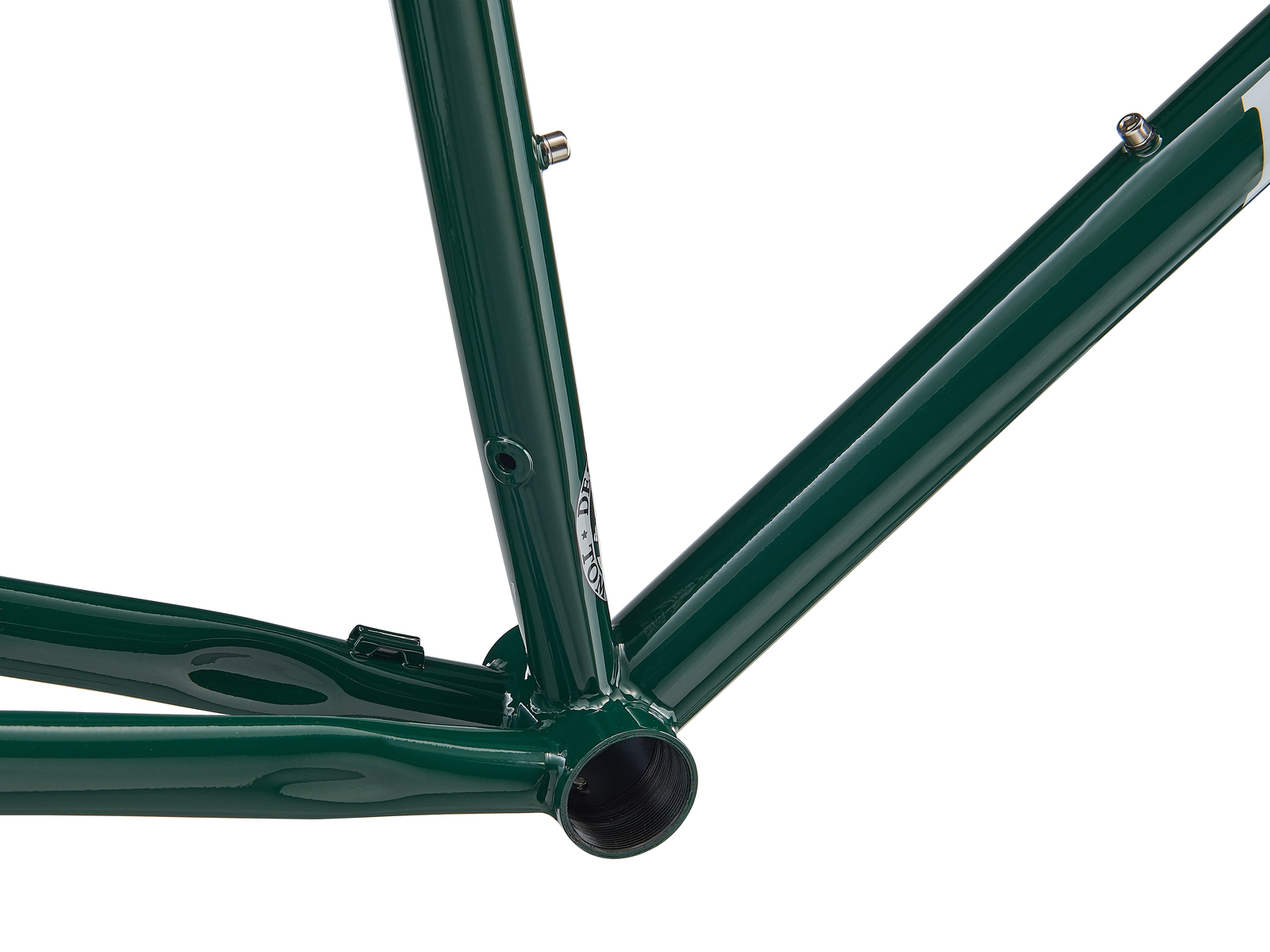

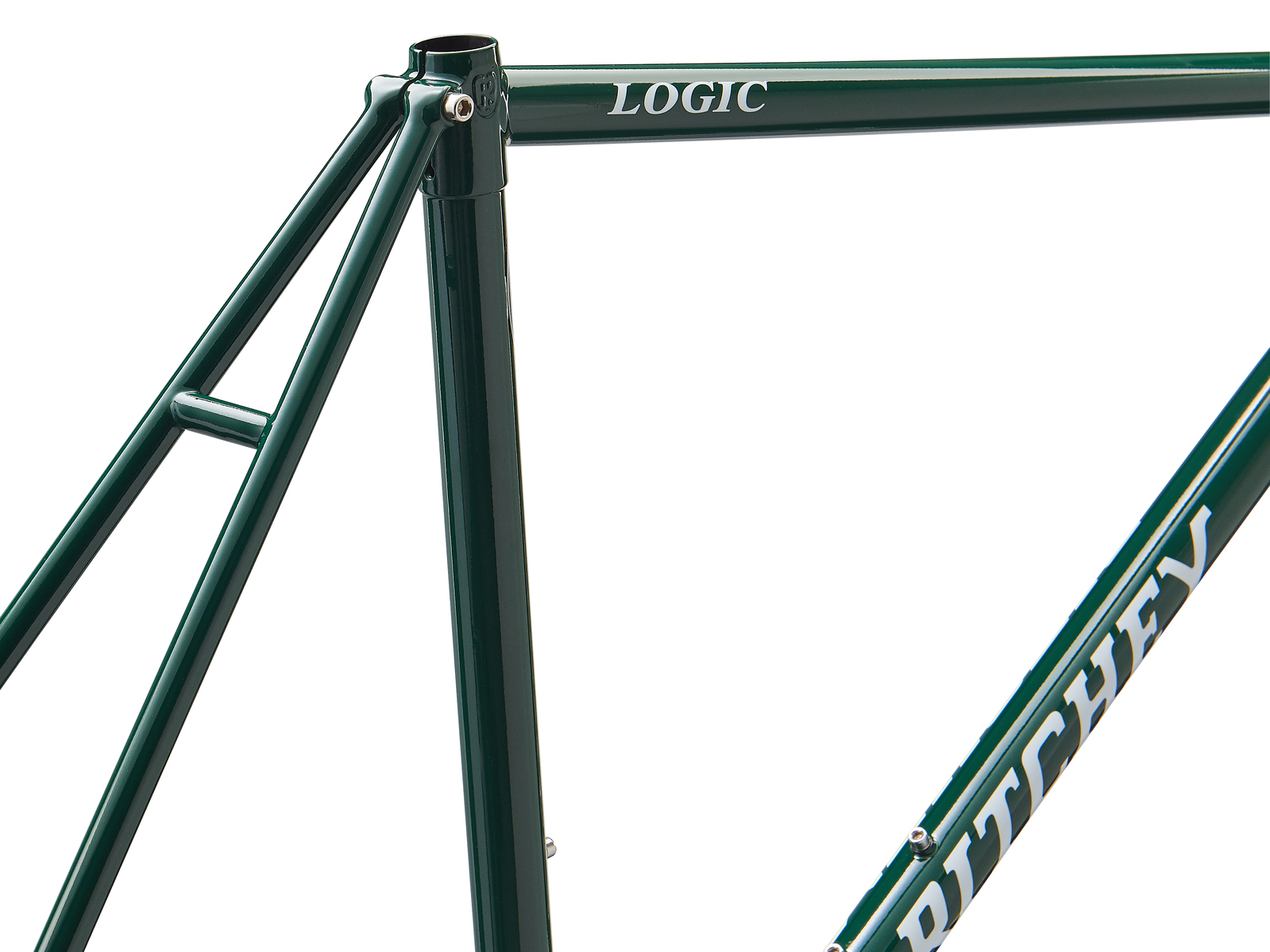

Material: heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded

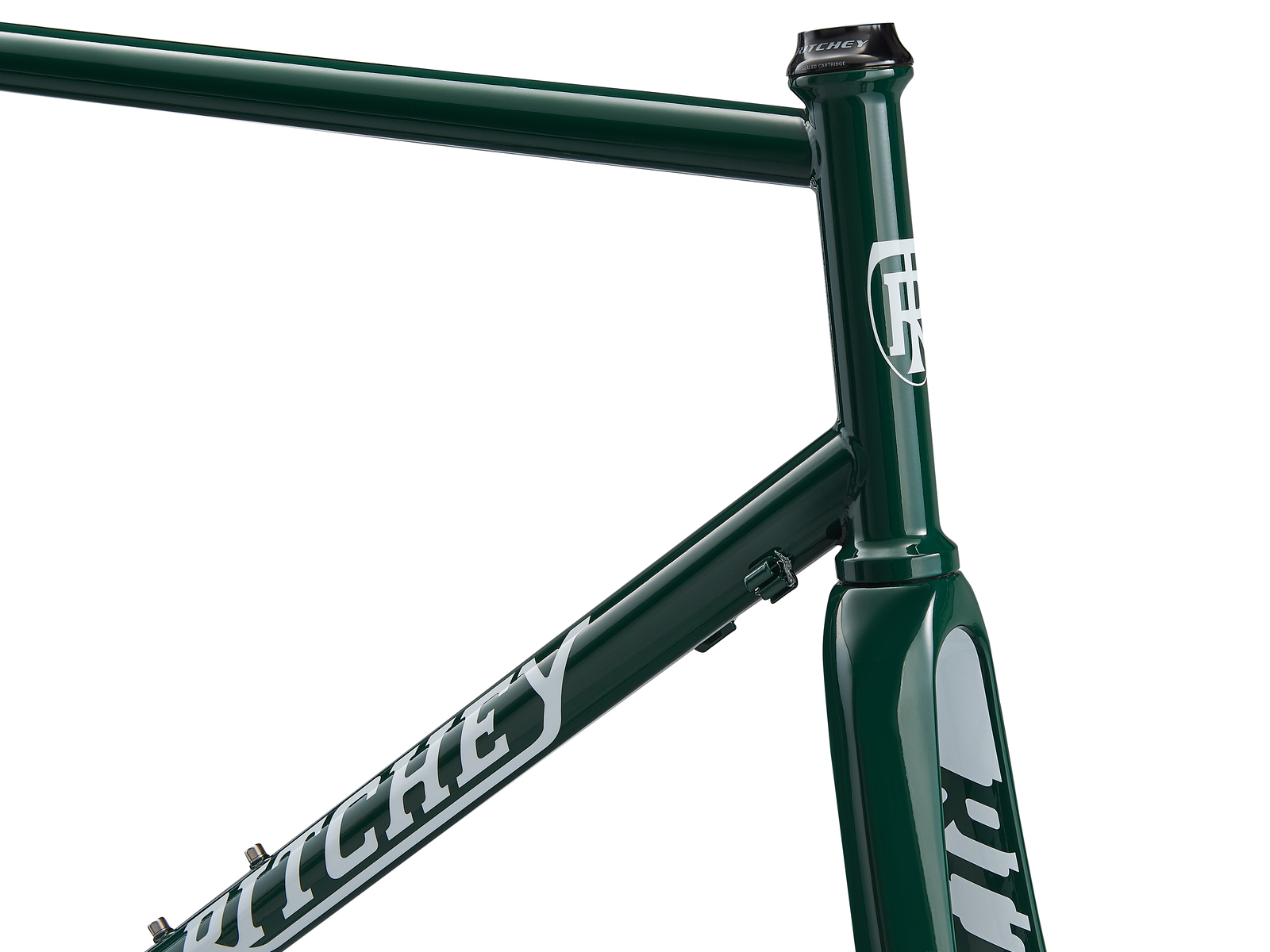

Ultra-light forged and machined straight 1-1/8" headtube
WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)
142mm spacing (12mm alloy thru-axle included)
Replaceable stainless-steel derailleur hanger
27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)
Front derailleur clamp size: 28.6mm (max torque setting: 2.5Nm) - not included
Bottom bracket: 68mm - English threaded
Can accommodate 1X or 2X chainrings
Crankset min/max ring size - single: 36 to 50t / double: 46/30t to 53/39t
External cable routing
Bottle mounts: 2

Fork

Ritchey WCS Carbon Disc Road Fork included
1-1/8" straight steerer with integrated 45-degree crown race
100mm spacing (12mm alloy thru-axle included)
Steerer length: 300mm
Axle-crown: 371mm
Rake/Offset: 46mm

Tire Compatibility

Wheel and tire compatibility: 700 x 30c tire clearance (depending on tire/rim manufacturer)
Frame max spacing: 39mm
Fork max spacing: 40mm

Brake Compatibility

Flat-mount brakes front and rear: 140mm (160mm max - adaptors available separately)
Frame flat-mount bracket height: 10mm

Details

Sizes: 49 / 51 / 53 / 55 / 57 / 59cm
Frame weight: 1.79Kg (size 55 - w/o thru-axle)
Fork weight: 390g (with uncut steerer / not including axle)
Colour: green

Frame - Road Logic Classic (rim brake)

Material: heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
Ultra-light forged and machined straight 1-1/8" headtube
WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)
Standard Quick Release front and rear
27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)
Front derailleur clamp size: 28.6mm (max torque setting: 2.5Nm) - not included
Bottom bracket: 68mm - English threaded
Crankset min/max ring size: 46/30t to 53/39t
External cable routing
Bottle mounts: 2

Fork

Ritchey WCS Carbon Road Fork included
1-1/8" straight steerer with integrated 45-degree crown race
Steerer length: 300mm
Axle-crown: 371mm
Rake/Offset: 46mm (sizes 49/51/53cm) – 43mm (sizes 55/57/59cm)

Tire Compatibility

Wheel and tire compatibility: 700 x 30c tire clearance (depending on tire/rim manufacturer)
Frame max spacing: 38mm
Fork max spacing: 40mm

Details

Sizes: 49 / 51 / 53 / 55 / 57 / 59cm
Frame weight: 1.75Kg (size 55)
Fork weight: 350g (uncut steerer)
Colour: red

Frame - BREAK-AWAY ROAD LOGIC FRAMESET (rim brake)

DESCRIPTION
Your days of navigating airports and taxis with bulky and unruly bike boxes on your way to and from distant cycling destinations are a thing of the past. The legendary steel Road Logic Break-Away is back in the Ritchey stable!

The bike that travels with you, the Road Logic Break-Away easily and quickly disassembles to fit into its own included sturdy travel case that is designed to help you avoid airline extra baggage fees. Once you arrive at your destination, the bike assembles with ease - allowing you to quickly get out and go.

While the main feature of the Road Logic Break-Away is its liberating and innovative travel-friendly design, this unique version of the Road Logic frameset is 100% true to the spirit, spec, and ride quality of its standard frame sibling. The Road Logic Break-Away offers a riding experience that's steeped with more than fifty years of frame building heritage, innovation, and exploration. The beauty of its classic lines unites with modern building techniques and proven materials to deliver a contemporary bicycle that's wonderfully comfortable for long days in the saddle, nimble and stiff enough to win the sprint for that sign, and adequately adaptable to endure roads that might lack proper pavement – be it out your back door or in a different hemisphere.

A modern classic by any measure, the Road Logic Break-Away is crafted with a heat-treated and triple-butted Ritchey Logic tubeset. This steel frameset features aggressively short-butted sections optimized for TIG welding that save weight and improve ride quality. Other features of the Road Logic Break-Away frameset include Ritchey’s proprietary forged-and-machined integrated head tube that uses standard drop-in bearings which saves 80 grams over a standard head tube design, spacing for up to 30c tires, and a Ritchey Carbon Fork for precise handling and plenty of tire clearance.

The Road Logic Break-Away is sure to set you free to experience a lifetime of pedal turns - wherever you land and wherever they might lead you.

FRAME
Material - heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded Ultra-light forged and machined straight 1-1/8" headtube Electrophoretic Deposition (ED Coat) treated for corrosion resistance
Seat tube clamp size - 28.6mm (2.5Nm max for derailleur clamps and chain guides)
27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)
Bottom bracket68mm - English threaded
Crankset min/max ring size - single46/30t to 53/39t
Bottle cage mounts2
Standard Quick Release front and rear
External cable routing
WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)
Patented Ritchey Break-Away® design

FORK
Ritchey WCS Carbon Road Fork included
1-1/8" straight steerer with integrated 45-degree crown race
Steerer length - 300mm
Axle-crown - 371mm
30mm maximum spacers below stem
TIRE COMPATIBILITY
Wheel and tire compatibility - 700 x 30c tire clearance (depending on tire/rim manufacturer)
Frame max spacing - 38mm
Fork max spacing - 40mm

DETAILS
Sizes - S / M / L / XL
Frame weight - 1,950g (size L)
Fork weight - 350g (uncut steerer)
Colour - Tule fog
Downtube Break-Away coupler torque: 5Nm (Do not lubricate clamp or clamping area)
Downtube hinge clamp, rear brake cable connector and derailleur cable connectors included
Packs into included travel case (8.5” / 21.6cm W x 26.5” / 67.3cm H x 31” / 78.8cmL w/ wheels)

https://www.youtube.com/watch?v=PzqfJ9ZT8sg

BIKE FRAMES
It can be said that Ritchey steel bike frames are as iconic as the European masters that came before. Truly contemporary classics, Ritchey bike frames are for discerning cyclists who want a timeless bicycle that is sure to be the subject of discussion at any club ride or local. From the forged, machined headtube to the force directional, location-specific butted tubing,

Ritchey bikes are more than classy steel frames. They're a logical choice when looking to build up your next dream bike.
