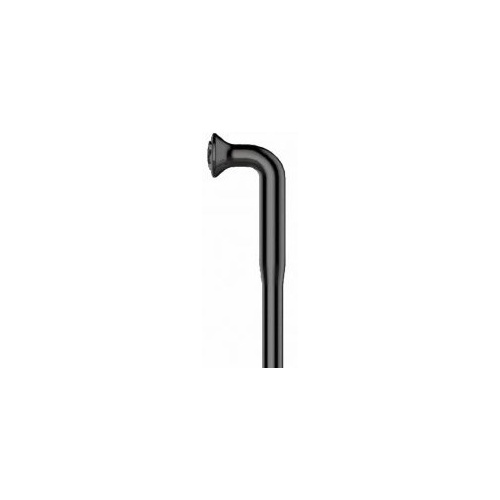

J-Bend SSB23 eMAX - 12G/13G 2.6/2.34 BLACK

J-Bend SSB23 eMAX 12G/13G (2.6/2.34) BLACK

Pillar SSB23 "eMAX" - a super beefy spoke specifically for super heavy duty requirements!

This single butted and cold forged spoke is designed for the most heavy duty, of heavy duty applications... such as cargo bikes and eBikes.

"what's that you say?
your customer delivers pianos on a hub motor eCargo bike and keeps breaking spokes?

sir... I give you the eMAX.

2.6mm head (12g) and 2.34mm (13g) shaft and thread. Needs a hub designed for 12g and a rim designed for 13g. But if you need it. We've got it..."

The great thing about the eMAX is that being a regular 13g (2.34mm) thread from after the bend down to the thread, you can cut them to almost any size you require!

By strengthening the spoke's arc at the hub flange, this critical area is reinforced with more material and prevents spoke breaks.

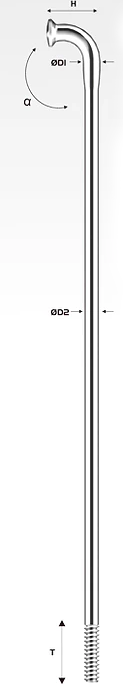

Dimensions: 2.6/2.34mm (refers to the diameter of spoke arc/main body of spoke)
Thread: rolled (according to DIN 79012)
arc angle of the spoke head: 95°
Thread length: 9.0 mm
Material: stainless steel

NOTE
this spoke has a 12g (2.6mm) head. It can only be used on hubs specifically designed for this purpose.
this spoke has a 13g (2.34mm) thread. It can only be used with a 13g nipple and rims that have been manufactured to accept 13g nipples.
(Spokes will be supplied without nipples! If necessary.please order separately)

PLEASE NOTE:
It is important to make sure when ordering spokes that you make your choices carefully. Use a reputable spoke calculation program (or three) to work out the lengths, if you are unsure how to do this, then speak to a professional wheelbuilder before placing your order. If you are unsure which spokes are most suitable for your needs, contact us or speak to a professional wheelbuilder.

We can not refund or exchange spokes once they have been picked, packed and invoiced.

(PRG-SJSSB23K-PAR)
