Kid Axle: Length 154 to 167mm with 1.0mm Thread (KID217)

Kid Axle: Length 154 to 167mm with 1.0mm Thread (KID217)

Robert Axles for Kid Trailers are designed specifically to fit your 12mm thru-axle bike and allow attachment of any hitch-mounted trailer. These fit any trailer that has two wheels and a single point of attachment to the axle. This includes all the two-wheeled child, pet and cargo trailers such as: Thule, Chariot, Burley, Instep, Carry Freedom, and many more.

Purchase our Kid Trailer axle for your bike. Share your stoke for cycling with your kids. Simplify your life by allowing quick and secure attachment of your trailer to your best and favorite bike. Enjoy the adventure.

Since 2013, we have been an important part of cyclists’ adventures all over the world. Our axles have millions of miles on them in mountain bikes and road bikes, carbon bikes, fat bikes and e-bikes. Our axles are specifically designed to handle the high-torque loads generated by e-bikes.

Your stock thru-axle is not strong enough to haul your precious cargo! Our axles are 3 to 4 times stronger than the stock axle that came with your bike. Our stainless steel axle ends provide a safe and secure attachment point of the hitch to the axle. The axle is quick to install and remove with a common 5mm hex key.

Our axles are not just designed in the USA, but are made here as well. They are machined by avid cyclists to the tightest standards in the industry. We safety test, to failure, every batch of axles we produce to ensure they exceed your expectations.

SPECIFICATION

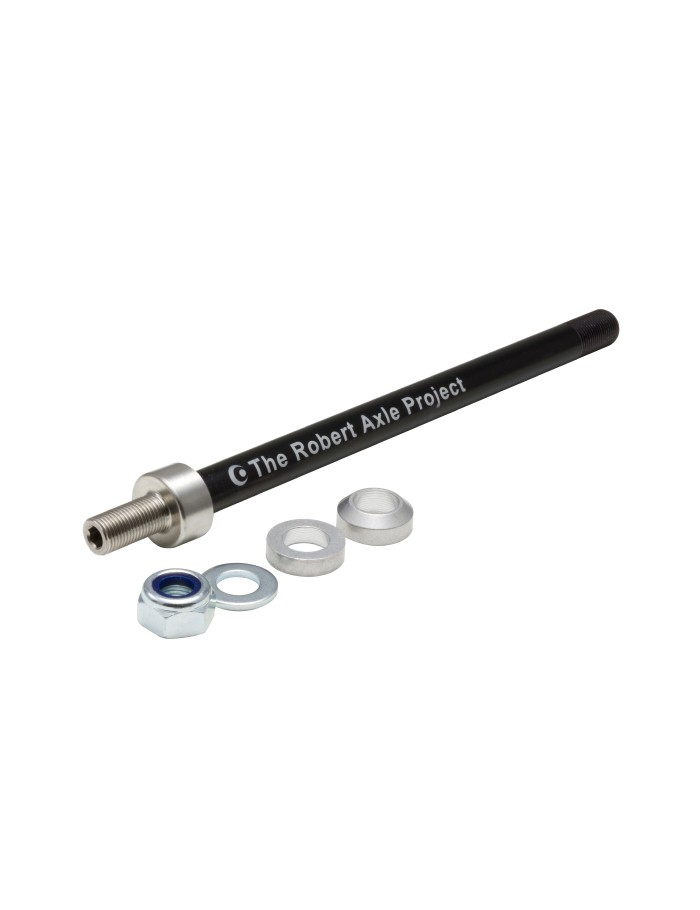

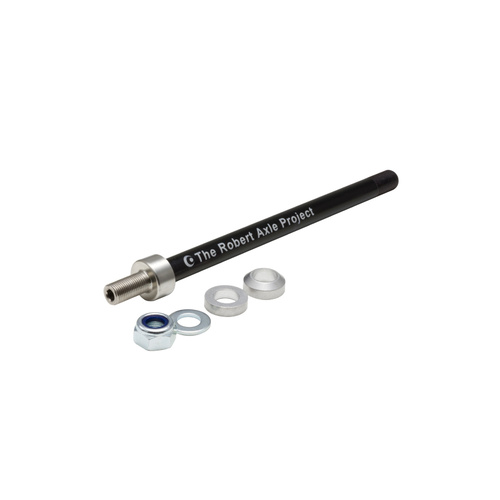

Robert Axle for Hitch-Mount Trailers replaces your stock axle to attach your child trailer to your 12mm thru-axle equipped bike.

• This axle is compatible with Burley, Carry Freedom, Chariot/Thule, Croozer, Instep, and many more.
• The true length of the axle shaft is 167mm, but can be shorted using the included spacers – a flat spacer and a tapered X-12 spacer. This allows for axle lengths of 152 mm or 167 mm.
• Please note: Thru-axle lengths do not equal hub standards. An axle has to be longer than the hub to fit in the frame. (A 12×142 hub does not equal a 142mm long axle)
• This axle has a 1.0 mm thread pitch.
• The axle shaft and axle end are precision CNC machined.
• The axle shaft is 7075 aluminum and hard black anodized for rugged durability.
• The axle end is stainless steel, which allow for mounting of the hitch provided with your trailer. The threads are M10x1 (metric).
• Hardware for attachment of the hitch is included; the hitch is not.
• No special tools required. Design allows for installation or wheel removal using your standard 5mm hex wrench.
• Designed, built and quality tested in the USA. Proven around the world.
