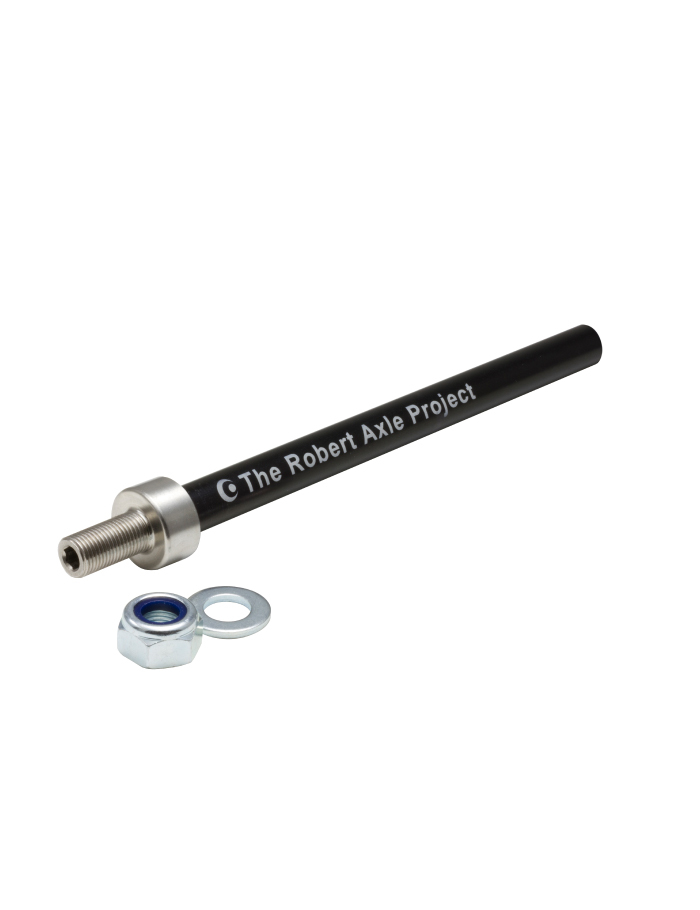

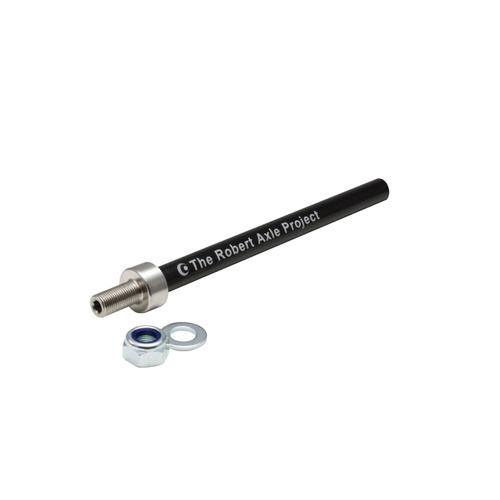

Kid Axle: Length 165 mm Double Lead Thread (KID224)
Simplify your life by allowing quick and secure attachment of your trailer to your best and favorite bike. Share your stoke and enjoy the adventure!
This axle has a unique 1.0 “double lead-in” thread that ONLY works with the Mavic Speed Release system.
Robert Axle for Kid Trailers replaces your stock thru-axle so you can attach a child or cargo trailer to your 12 mm thru axle equipped bike.
This axle is compatible with Burley, Carry Freedom, Chariot/Thule, Croozer, Instep, and many more hitch style trailers.
The true length of the axle shaft is 165 mm. Please note: Thru-axle lengths do not equal hub standards. An axle has to be longer than the hub to fit in the frame. A 12×142 hub does not equal a 142 mm long axle.
This axle has a proprietary thread pitch which is only compatible with Mavic Speed Release compatible frames.
The axle shaft and axle end are precision CNC machined.
The axle shaft is 7075 aluminum and hard black anodized for rugged durability.
The axle end is stainless steel, which allow for mounting of the hitch provided with your trailer. The threads are M10x1 (metric).
Hardware for attachment of the hitch is included; the hitch is not.
No special tools required. Design allows for installation or wheel removal using your standard 5mm hex wrench.
Designed, built and quality tested in the USA. Proven around the world.
(RAG-KID224)
SKU | RAG-KID224 |
Barcode # | 602150474047 |
Brand | Robert Axle Project |
Shipping Weight | 0.1000kg |
Shipping Cubic | 0.000400000m3 |
