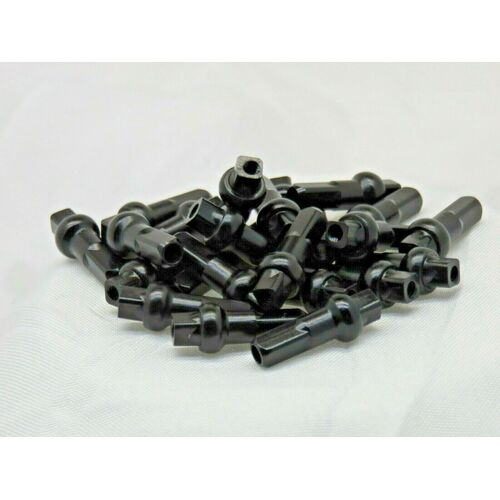

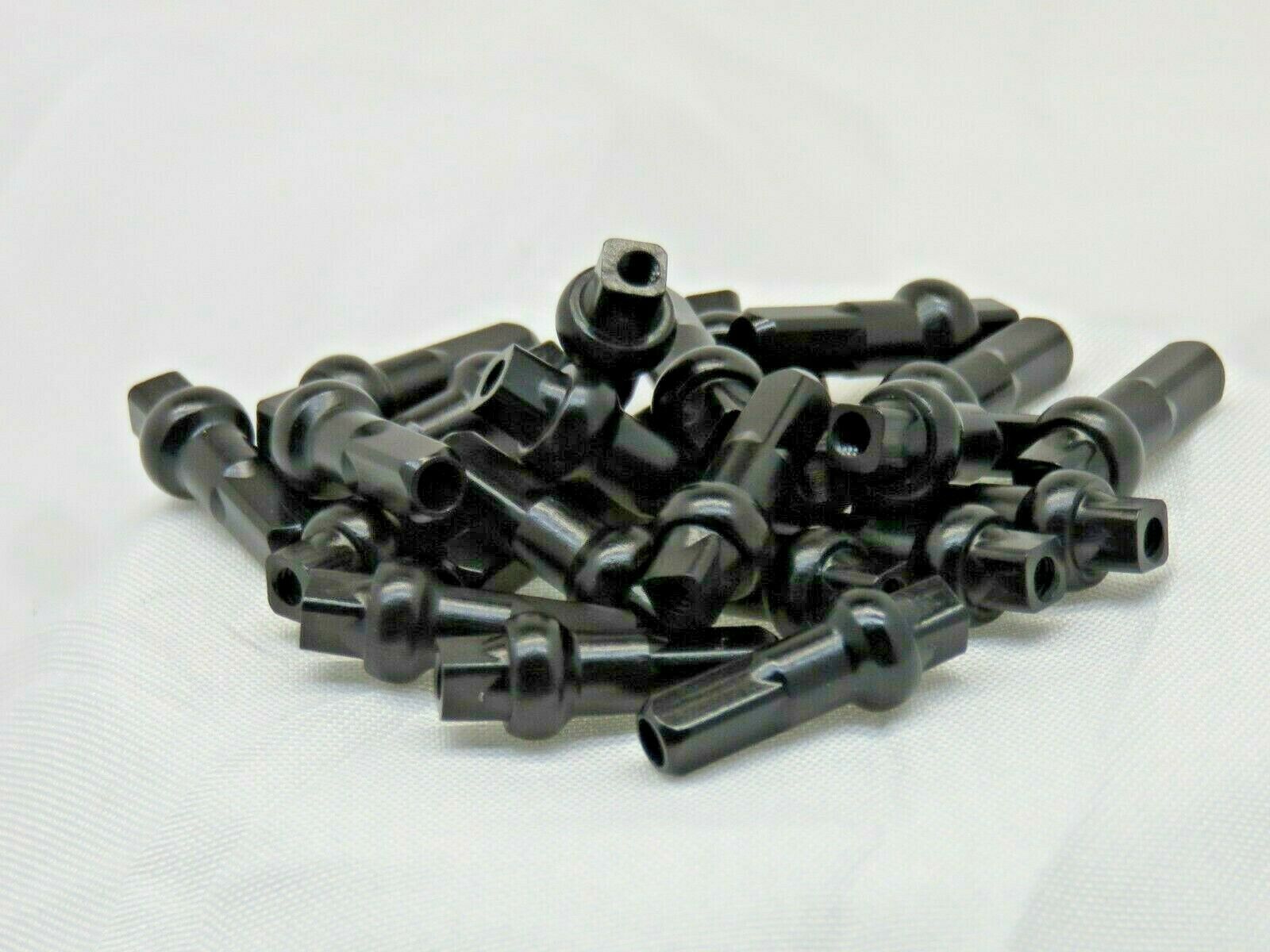

SQUARE DRIVE Alloy 14G 14.4mm BLACK BOX 100

Pillar ALLOY nipples come in two distinct models:

Standard
available in 14g (2.0mm)
finish - black, silver, red, blue, gold, purple, turquoise
lengths - 12mm (all colours), 14mm or 16mm (black & silver only)
box quanties - 100 or 500

SQUARE drive (DSN)
forged & machined 14g (2.0mm)
finish - black or silver
length - 14.4mm
Square drive (or DSN) nipples have a square interface on the end of the nipple that normally would have a driver slot, or a hex. This raised square interface allows for very fine tuning of the spoke tension. Building a better wheel.

Many Pillar nipples are also available with Pillar's new AB-Lock compound.


AB-Lock is a process where a dual compound, adhesive liquid is injected into the nipple thread during manufacture, this compound then dries and remains dormant until a spoke is threaded through the compound.

By threading the nipple onto the spoke the adhesive is activated and begins to cure.
(it is recommended that wheels using AB-Lock be built in "one sitting" and not "finished" the following day).

However, re-truing the wheel is still possible even after the adhesive has cured completely, with only a minimal percentage decrease of its thread holding capability.

About Pillar Spoke
With specialist manufacturing operations in Taiwan, coupled to the latest research and development facilities, Pillar has become the number one choice for spokes and nipples amongst the finest brands in the bicycle world today.

Pillar holds countless patents on the technology and products it has developed over the years and will continue to lead the way to other manufacturers around the world. The continuous development of new and exciting materials will ensure that Pillar is the only choice of people in the know.
