Sunringle Wheels Expert Front

A LONG HISTORY OF SUCCESS

Sun Metal Products, which dates back to 1946, originally owned SUNringlé. The Warsaw, Ind., company manufactured a wire-spoke wheel line, and developed wheels for lawnmowers, garden utility vehicles and stationary bicycles. Twenty years later, they began producing alloy rims for high-performance, off-road motorcycle racing. In the 1980s, Sun also began developing high-end alloy rims for bicycles. In the 1990s, Sun expanded their production facilities and built manufacturing plants in China to meet the needs of the growing Asian bicycle manufacturing industry.

WINNING WHEEL RIMS

Sun Products was recognized as one of the world’s best rim makers with numerous victories in the World Cup, NORBA Nationals and a silver medal at the Olympic Games held in Atlanta. In 1997, Sun Products purchased Ringlé Racing Components and formed the SUNringlé brand.

MULEFÜT 80 (V2)
Fat bikers have ridden the Mulefüt 80SL wheelset on more off-the-beaten-path trails and snow-covered wonderlands than any other fat bike rim. The most popular wheel on the market, the Mulefüt 80SL has been reinvented with the Mulefüt 80SL V2. Whether you're exploring deep backcountry territory or racing the local snow circuit, the Mulefüt 80SL V2 is the ultimate fatbike wheelset.

KEY FEATURES
•Updated version of the best-selling Mulefüt 80SL
•STR (SUNringlé Tubeless Ready) - factory taped
•Pinned Joint
•Shimano MS and SRAM XD Freehub bodies included

SPECIFICATIONS
•Outer Rim Width: 80mm
•Inner Rim Width: 74mm
•Spoke Count: 32
•Front Hub Spacing: 150x15mm
•Rear Hub Spacing: 177mm(QR and 12mm caps included) and 197x12mm
•Rim Weight: 750g (26") 820g (27.5")
•Wheelset Weight: 2600g (26") 2740g (27.5")

WHAT'S IN THE BOX
•Tubeless Sealant
•Tubeless Valves
•Alternate Freehub Body

SR32 TRAIL EXPERT

Introducing the NEW reliable, light performance alloy trail wheels - the SUNringle Trail wheelsets. These new profiles feature 32mm inner width, 36mm outer width, and 20.25 depth 6069 AL welded rims laced to SRX Hubs with 12 degrees of engagement.

SPECIFICATIONS
•Rim Technology: STR (SUNringlé Tubeless Ready)
•Outer Rim Width: 35.5mm
•Inner Rim Width: 32mm
•Rim Type: Welded
•Hubs: Ringlé SRX
•Brake Interface: 6 bolt
•Front Axle: 15 x 110 TA
•Rear Axle: 12 x 148 TA, 12 x 157 TA
•FH Body: Shimano MicroSpline, SRAM XD
•Spokes: Wheelsmith Straight Pull DB14
•Nipples: Wheelsmith Brass
•Hole Count: 28
•Size: 29”
•Weight: 895g (front), 985g (rear), 1880g (set)

WHAT'S IN THE BOX
•Tubeless Sealant
•Tubeless Valves
•Alternate Freehub Bodies

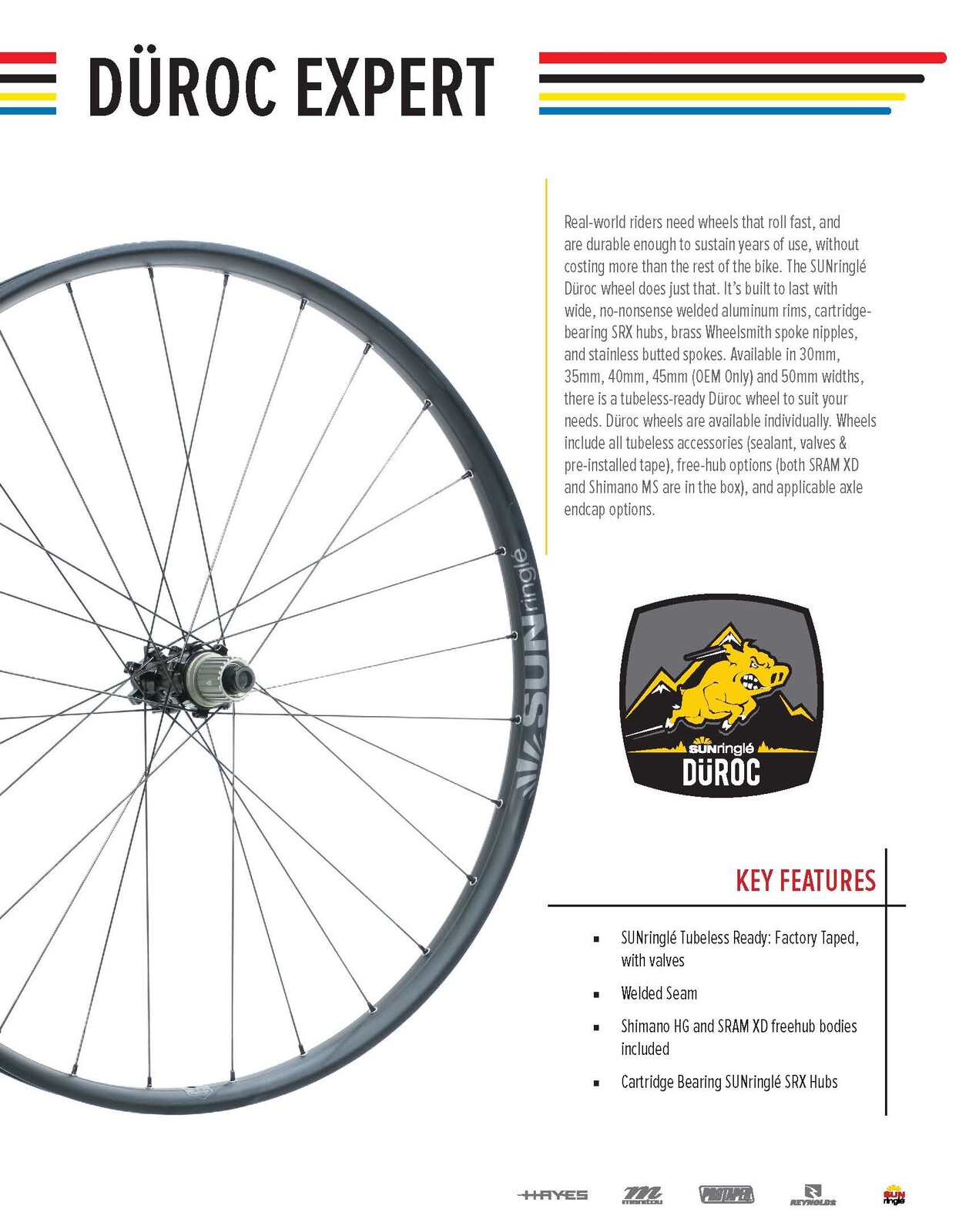

DUROC Wheel Expert Front

Real-world riders need wheels that roll fast, and are durable enough to sustain years of abuse, without costing more than the rest of the bike. The SUNringlé Düroc Expert wheel does just that. It's built to last with wide, no-nonsense welded aluminum rims, cartridge-bearing SRX hubs, brass spoke nipples, and stainless double butted spokes.

Available in 30mm, 35mm, 40mm, 45mm(OEM Only) and 50mm widths, there is a tubeless-ready Düroc wheel to suit your needs.

Rim models/widths
• Duroc 30 - 30mm OD / 26mm ID
• Duroc 35 - 35mm OD / 31mm ID
• Duroc 40 - 40mm OD / 36mm ID
• Duroc 45 - 45mm OD / 41mm ID (OEM Only)
• Duroc 50 - 50mm OD / 46mm ID

Düroc wheels are available individually.

Wheelsets include all tubeless accessories (sealant, valves & pre-installed tape)

KEY FEATURES
• SUNringlé Tubeless Ready: Factory Taped, with valves
• Welded Seam
• Cartridge Bearing SUNringlé SRX Hubs

WHAT'S IN THE BOX
• Tubeless Sealant
• Tubeless Valves
• Thru Axle caps

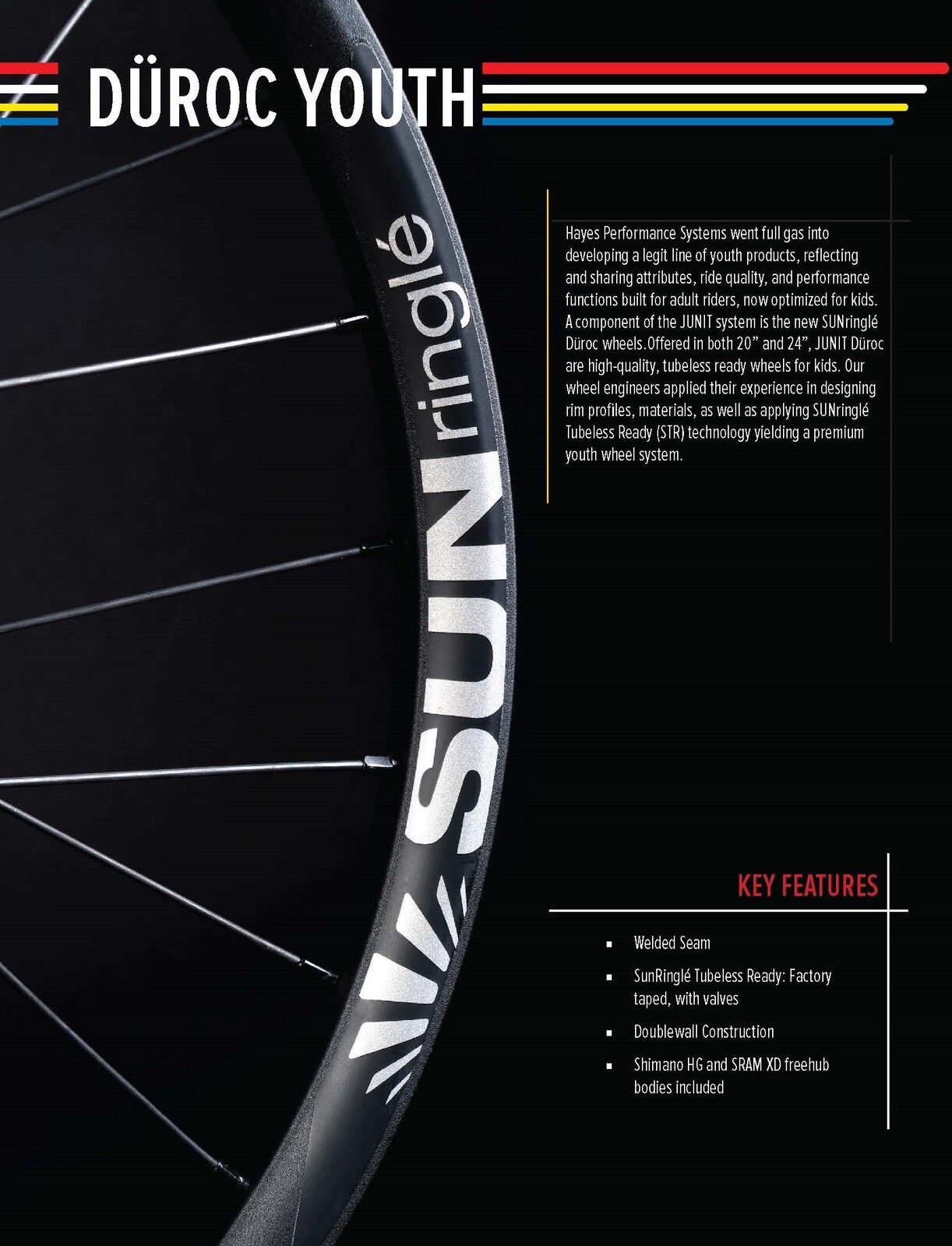

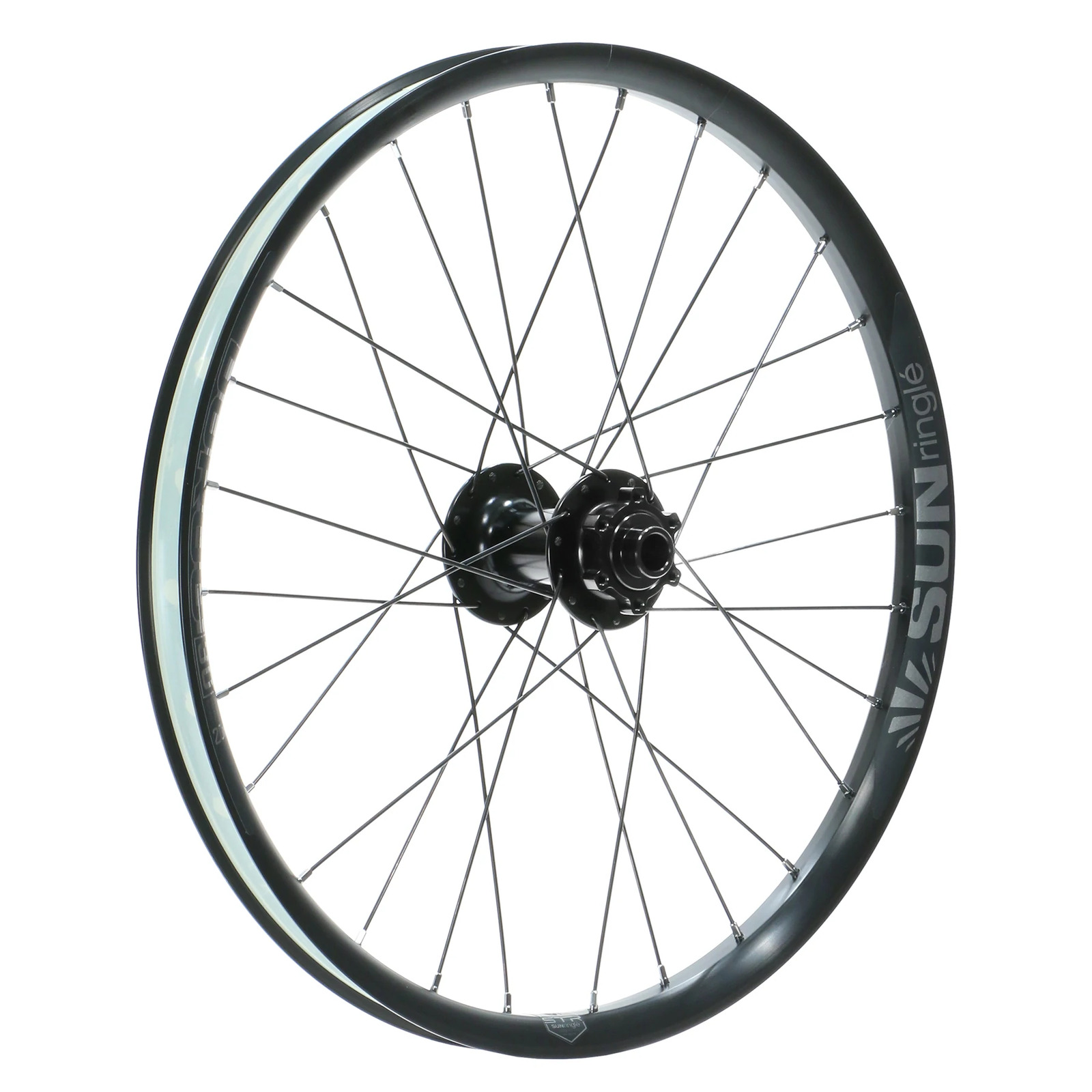

Düroc 30 JUNIT

SUNringlé Düroc 30 JUNIT wheels offer the same ride quality, and performance functions built for adult riders, now optimized for kids.

Offered in both 20” and 24”, Düroc JUNIT are high-quality, tubeless ready wheels for kids. They’re built using Wheelsmith spokes and nipples as well as SUNringlé SRC hubs and cartridge bearings.

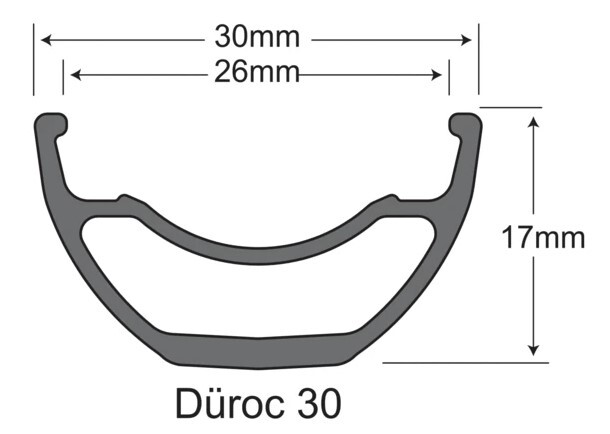

Outer rim width is 30mm followed by a 26mm inner bead width and 28-hole count. The wheel development team applied our experience designing rim extrusions, as well as applying SUNringlé Tubeless Ready (STR). Utilizing using our experience with metallurgy, we selected the ideal materials.

Düroc G30 gravel

Versatility, durability and performance designed for the gravel adventurer. Proven Duroc rim technology, wide tubeless channel and easy tubeless setup available in 700C and 650b. New Ringle SRX hubs with improved performance with 12° engagement.

FRONT WHEEL MODELS AVAILABLE
• Duroc 30 Expert 27.5in Front 110x15 AM (292-33084-K002-C)
• Duroc 30 Expert 29in Front 110x15 AM (292-33086-K002-C)
• Duroc 35 Expert 27.5in Front 110x15 AM (292-33088-K002-C)
• Duroc 35 Expert 29in Front 110x15 AM (292-33090-K002-C)
• Duroc 40 Expert 27.5in Front 110x15 AM (292-33092-K002-C)
• Duroc 40 Expert 29in Front 110x15 AM (292-33094-K002-C)
• Duroc 50 Expert 27.5in Front 110x15 AM (292-33096-K002-C)
• Duroc 50 Expert 29in Front 110x15 AM (292-33098-K002-C)
• Duroc SD37 Expert 27.5 Front 110x20 DH (292-33104-K001-C)
• Duroc SD37 Expert 27.5 Front 110x15/20 Boost (292-33104-K002-C)
• Duroc SD37 Expert 29 Front 110x15/20 Boost (292-33106-K002-C)
• Duroc SD42 Expert 27.5 Front 110x15 (292-33108-K002-C)
• Duroc 30 JUNIT 20in Front 100x15/QR (292-33110-K001-C)
• Duroc 30 JUNIT 20in Front 110x15 (292-33110-K002-C)
• Duroc 30 JUNIT 24in Front 100x15/QR (292-33112-K001-C)
• Duroc 30 JUNIT 24in Front 110x15 (292-33112-K002-C)
• Duroc G30 Exp 650b Front 100x12/15 (292-39145-K001) GRAVEL
• Duroc G30 Exp 700c Front 100x12/15 (292-39147-K001) GRAVEL
